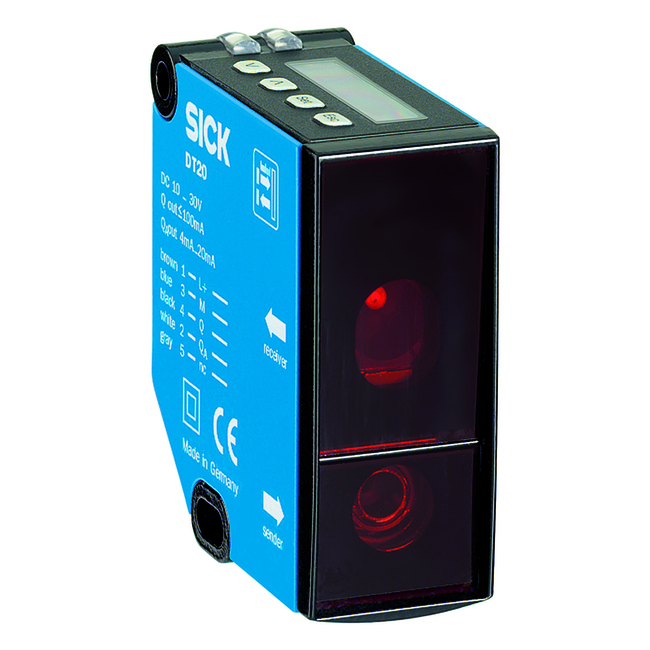

DT20-P224B SICK ⍾ 1040405 ⍾ DT20P224B
The DT20 Hi series laser distance sensor, model DT20-P224B, provides reliable distance measurement for industrial applications. It features a digital PNP output and a current analog output. The sensor's measuring range extends from 100 mm to 1,000 mm, with a linearity of ± 6,000 µm. Equipped with a Class 2 laser and a typical light spot size of 6 mm x 12 mm at 1000 mm distance, the sensor is housed in a metal enclosure and connects via an M12, 5-pin swivel connector.
- Type
- DT20 Hi
- Customs tariff number
- 90314990
- Expected origin
- DE
- Weight
- 0.17 kg
 |
SICK DT20-P224B Datasheet PDF (en) Size: 1.00 MB |
Download |
