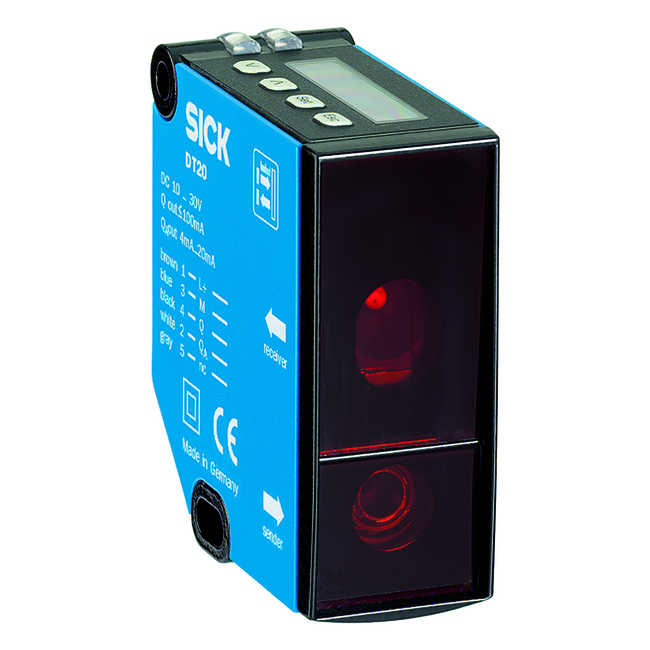

DT20-N214B SICK ⍾ 1040140 ⍾ DT20N214B
The DT20 Hi/DT20-N214B is a laser distance sensor featuring a digital output of 1 x NPN and a current analog output. It offers a measuring range from 100 mm to 600 mm with a linearity of ± 2,000 µm. This sensor has a laser class of 2, a typical light spot size of 3 mm x 6 mm at 600 mm, a metal housing, and connects via an M12, 5-pin, swivel connector.
- Type
- DT20 Hi
- Customs tariff number
- 90314990
- Expected origin
- DE
- Weight
- 0.18 kg
 |
SICK DT20-N214B Datasheet PDF (en) Size: 1.00 MB |
Download |
