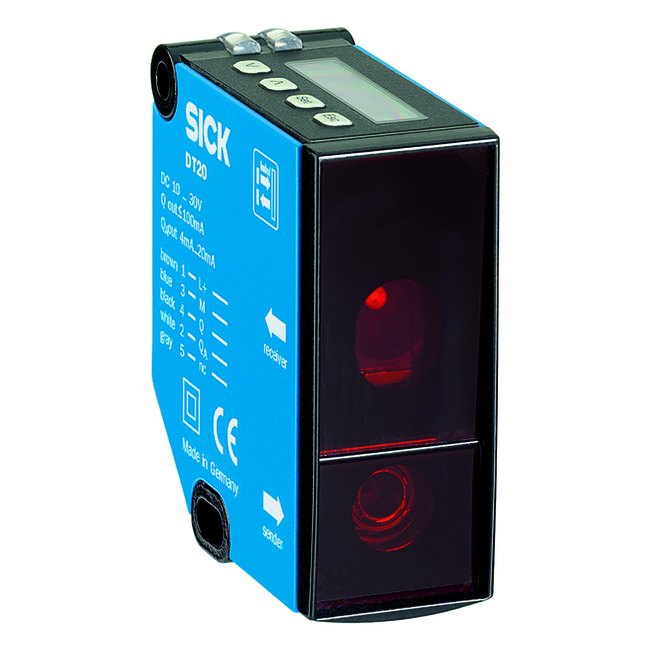

DT20-P214BS03 SICK ⍾ 1051547 ⍾ DT20P214BS03
DT20 Hi. Data interface: 1 x 4 mA ... 20 mA (≤ 300 Ω). Linearity: ± 2 mm. Typ. light spot size (distance): 3 mm x 6 mm (600 mm). Resolution: 0.5 mm. Measuring range: 100 mm ... 600 mm, 6 % ... 90 % remission. Connection type: Connector M12, 5-pin. Housing material: Metal housing with PMMA lens.
- Type
- DT20 Hi
 |
SICK DT20-P214BS03 Datasheet PDF (en) Size: 991 KB |
Download |
