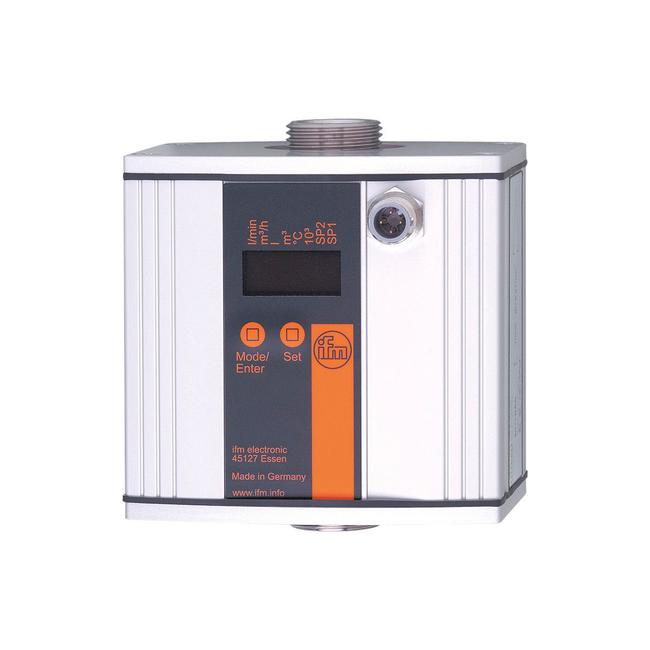

SU7200 ifm ⍾ SUR34HGBFPKG/W/US-100-IPF

Ultrasonic flow meter; Operating voltage [V] : 19...30 DC; (according to EN 50178 SELV/PELV); Min. insulation resistance [MΩ] : 100; (500 V DC); Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : 10; Total number of outputs : 2; Output signal : switching signal; Electrical design : PNP; Number of digital outputs : 2; Output function : normally open / normally closed; (parameterisable); Max. voltage drop switching output DC [V] : 2; Permanent current rating of switching output DC [mA] : 250; (per output); Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Measuring range : 0...50 l/min: 0...13.2 gpm; Display range : 0...60 l/min: 0...15.9 gpm; Resolution : 0.1 l/min: 0.02 gpm; Set point SP : 0.1...50 l/min: 0.04...13.22 gpm; Reset point rP : 0...49.9 l/min: 0...13.18 gpm; Max. flow rate [l/min] : 60; In steps of : 0.1 l/min: 0.02 gpm; Dynamic response T05 / T09 [s] : T09 = 70 (Q > 5 l/min); (water); Response time [s] : 0.25; (dAP = 0); Delay time programmable dS, dr [s] : 0...50; Damping for the switching output dAP [s] : 0...1; Parameter setting options : Flow monitoring; Temperature monitoring; Ambient temperature [°C] : -10...60; Storage temperature [°C] : -25...80; Materials : housing: AlMgSi0,5 anodised; Sealing: FKM; PA 6.6; cover film: PA; Materials (wetted parts) : stainless steel (1.4404 / 316L); FKM; PES; Centellen 200; Process connection : threaded connection G 3/4 flat seal; Display unit : l/min; m³/h; gpm; gph; °C; °F; Items supplied : sealings: 2, Centellen; Accessories (optional) : adapter for pipe: 1 x R1/2, stainless steel, E40178 | adapter for pipe: 1 x 1/2" NPT, stainless steel, E40191 | adapter for pipe: 1 x R1/2, brass, E40151 | adapter for pipe: 1 x 1/2" NPT, brass, E40154

Type

Flow sensors / flow meters

Connection

Connector: 1 x M12; Moulded body: brass, Optalloy-plated; Contacts: gold-plated

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

100 mA

Voltage supply

24 V

Display

Display unit: 4 x LED, green (l/min, m³/h, gal/min, gal/h) | Display unit: 2 x LED, yellow (°C / °F) | switching status: 2 x LED, yellow | measured values: alphanumeric display, 4-digit | programming: alphanumeric display, 4-digit

Degree of protection

IP 67

Weight

1535.5 g

Dimensions

104.5 x 32.5 x 113.6 mm
