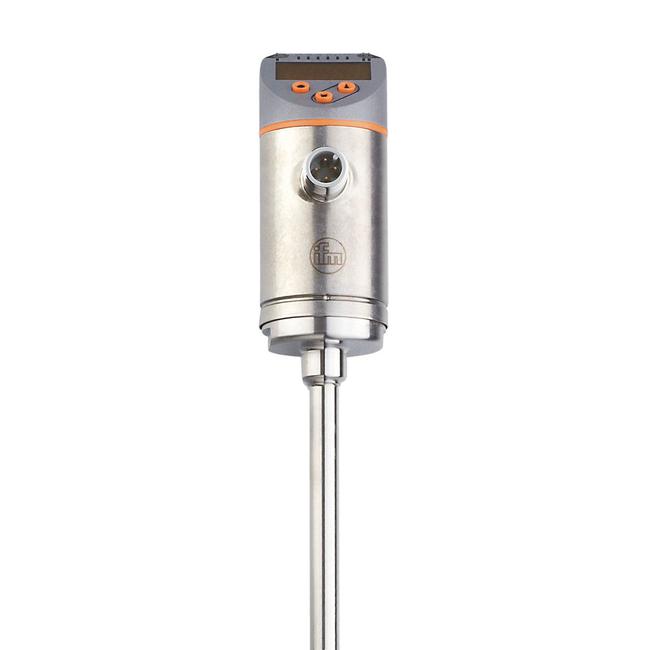

SA4104 ifm ⍾ SAEXXXXB50KG/US-100

Flow sensor; Operating voltage [V] : 18...30 DC; Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : 10; Total number of outputs : 2; Output signal : analogue signal; Number of analogue outputs : 2; Analogue current output [mA] : 4...20; (scalable); Max. load [Ω] : 350; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Probe length L [mm] : 100; Operating mode : relative; absolutely liquid; absolutely gaseous; (absolute: reference measurement recommended); Note on factory setting : Operating mode: relative; Setting range [m/s] : 0.04...6; Greatest sensitivity [m/s] : 0.04...3; Setting range [m/s] : 0...200; Greatest sensitivity [m/s] : 2...100; Dynamic response T05 / T09 [s] : 1,5 (T09); (water; flow velocity: 0,3...3 m/s); Response time [s] : 0.5; (T09; water; glycol: 0,8 s; air: 7 s; oil: 1,8 s; each T09); Parameter setting options : medium selection; Damping; Teach function; display can be rotated and switched off; standard unit of measurement; process value colour; Ambient temperature [°C] : -40...80; Storage temperature [°C] : -40...100; Materials : stainless steel (1.4404 / 316L); PBT-GF20; PBT-GF30; Materials (wetted parts) : stainless steel (1.4404 / 316L); Process connection : diameter Ø 8 mm

Type

Flow sensors / flow meters

Connection

Connector: 1 x M12; Contacts: gold-plated

No. of inputs/outputs

Number of analogue outputs: 2

Current consumption

< 100 mA

Voltage supply

24 V

Display

Display unit: 6 x LED, green (%, m/s, l/min, m³/h, °C, 10³) | measured values: alphanumeric display, red/green 4-digit

Degree of protection

IP 65; IP 67

Weight

260.5 g

Dimensions

Ø 58 / L = 80.2 mm
