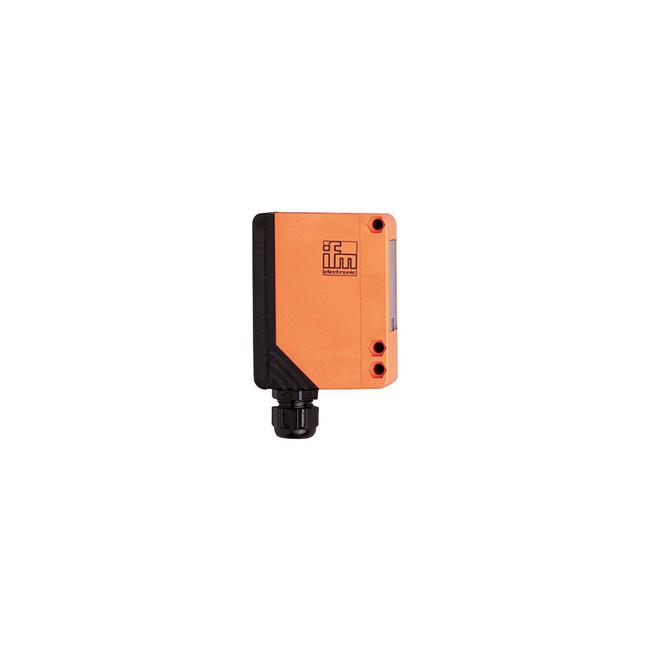

OA5209 ifm ⍾ OAT-FCKG/T

Diffuse reflection sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : infrared light; Wave length [nm] : 875; Electrical design : PNP/NPN; Output function : light-on/dark-on mode; (programmable); Function check output : yes; Max. current load for function check output [mA] : 10; Permanent current rating of switching output DC [mA] : 250; Max. current load in dual output mode [mA] : 100; Switching frequency DC [Hz] : 300; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Time function [s] : 0.5...10; Range [mm] : 5...2750; (white paper 300 x 300 mm); Range adjustable : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : PPO modified; Lens material : PMMA; Lens alignment : side lens; Operating elements : on-delay or off-delay selectable via slide switch; Items supplied : Angle bracket: 1, E20514 | screwdrivers

Type

Photoelectric sensors

Connection

terminals: ...1.5 mm²; Cable gland: M16 X 1.5

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

< 50 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green | function: 1 x LED, red

Degree of protection

IP 65

Weight

291 g

Dimensions

90 x 30 x 70 mm
