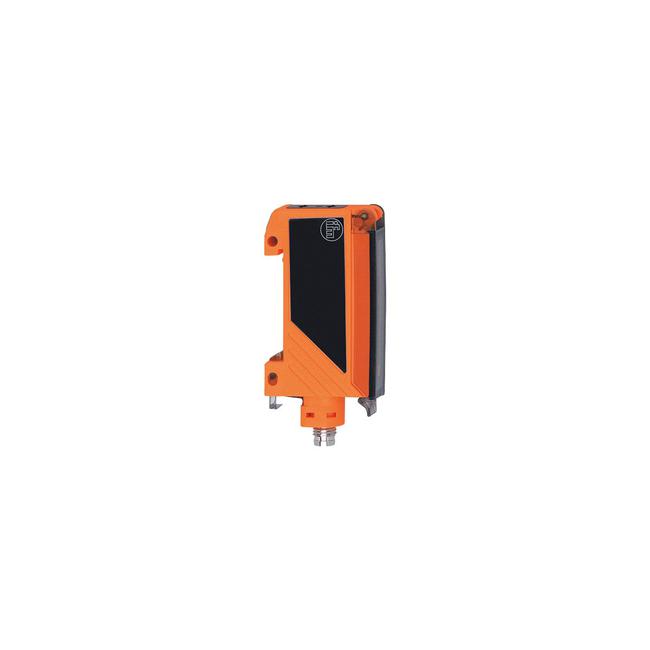

OBF508 ifm ⍾ OBF-FAKG/T/AS
Fibre-optic amplifier; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Type of light : red light; Electrical design : PNP/NPN; (automatic load detection PNP/NPN); Output function : light-on/dark-on mode; (programmable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Time function [s] : 0.001...0.09; Range [m] : 0...1; (Through-beam sensor); Range [mm] : 0...150; (Diffuse reflection sensor); Factory setting : dark-on mode; Range adjustable : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : PPE modified; Lens alignment : side lens; Connector: 1 x M8
- Connection
- Connector: 1 x M8
- No. of inputs/outputs
- Number of digital outputs: 2
- Current consumption
- < 50 mA
- Voltage supply
- 24 V
- Display
- switching status: 1 x LED, yellow | operation: 1 x LED, green | unsafe zone: 1 x LED, red | excess gain: 4 x LED, green
- Degree of protection
- IP 65
- Weight
- 66.5 g
- Dimensions
- 36 x 15 x 60 mm
