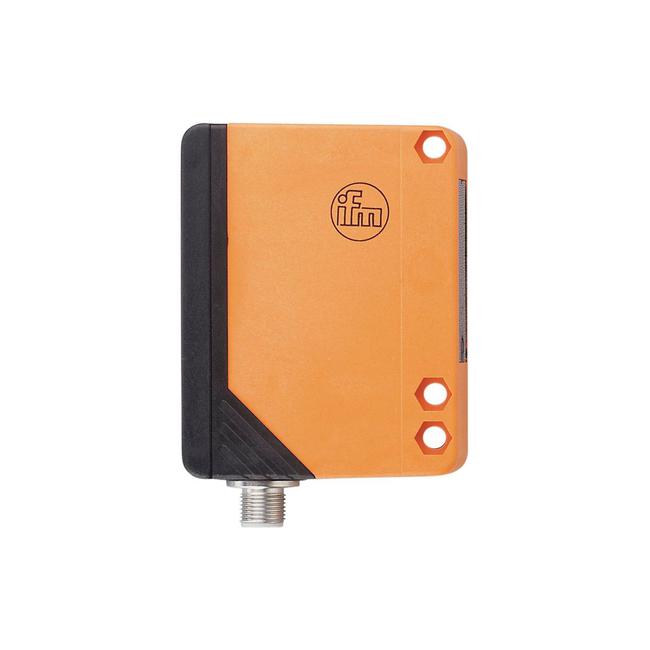

OA5120 ifm ⍾ OAT-FPKG/US

Diffuse reflection sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : infrared light; Wave length [nm] : 880; Electrical design : PNP; Output function : light-on/dark-on mode; (programmable); Function check output : yes; Max. current load for function check output [mA] : 10; Permanent current rating of switching output DC [mA] : 250; Max. current load in dual output mode [mA] : 100; Switching frequency DC [Hz] : 300; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range [mm] : 5...1500; (white paper 200 x 200 mm); Range adjustable : yes; Ambient temperature [°C] : -25...60; Housing : rectangular; Materials : PPO modified; Lens material : PMMA; Lens alignment : side lens; Items supplied : Angle bracket | screwdrivers

Type

Photoelectric sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

< 50 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green | function: 1 x LED, red

Degree of protection

IP 65

Weight

289.5 g

Dimensions

90 x 30 x 70 mm
