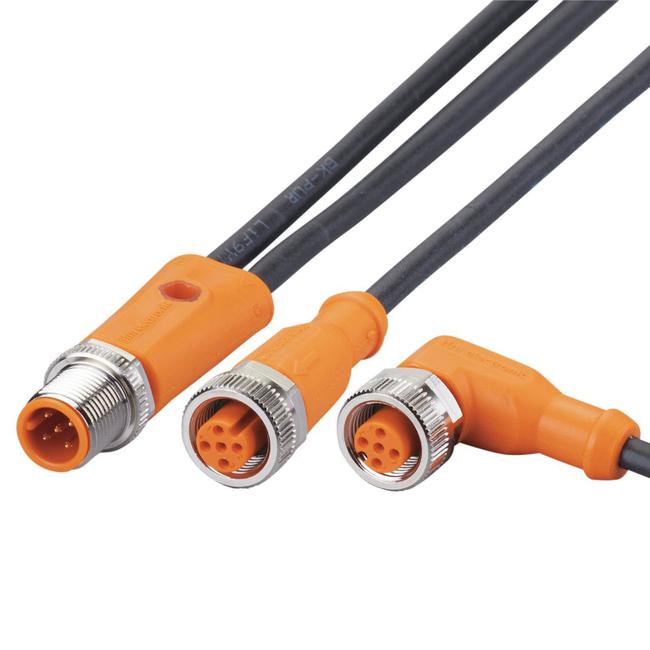

EVC642 ifm ⍾ YDOXH050MSS00,1H05STGH050MSS

Y connection cable; Operating voltage [V] : < 60 AC/DC; Protection class : II; Max. current load total [A] : 3; Ambient temperature [°C] : -25...90; Ambient temperature (moving) [°C] : -25...90; Storage temperature [°C] : -25...55; Storage humidity [%] : 10...100; Other climatic conditions for storage according to stated class : 1K22/ DIN 60721-3-1; Moulded-body material : TPU; Material nut : brass, nickel-plated; Sealing material : FKM; Number of ports splitter box : 2; Drag chain suitability : yes; Drag chain suitability : bending radius for flexible use: min. 10 x cable diameter | travel speed: max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s² | bending cycles: > 5 Mio. | torsional strain: ± 180 °/m

Type

Y-splitters

Connection

Cable: 0.1 m, PUR, Halogen-free, black, Ø 4.6 mm; 5 x 0.34 mm² (42 x Ø 0.1 mm )

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 60 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 65; IP 67; IP 68; IP 69K

Weight

56.7 g

Dimensions

15.5 x 15.5 x 45 mm
