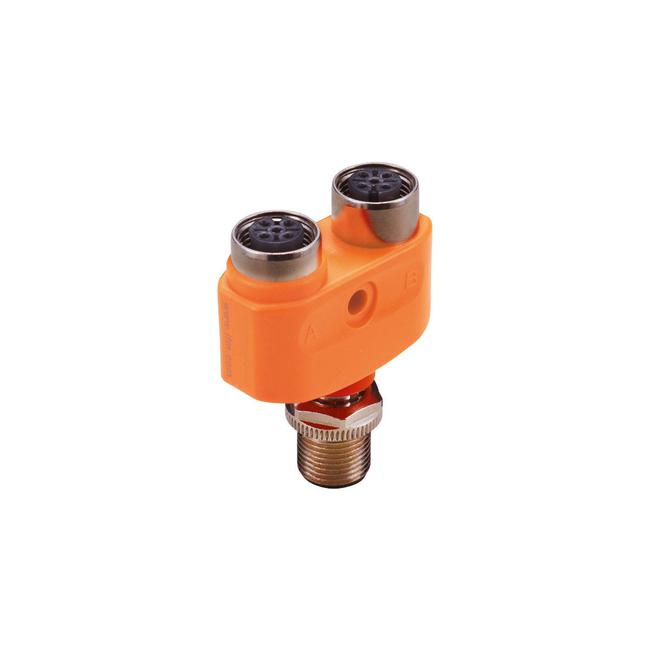

EBC113 ifm ⍾ ZDO2H030MSS0000-00STGH040MSS

Y-splitter; Operating voltage [V] : < 250 AC / < 300 DC; (cULus: 30 AC / 42 DC); Protection class : II; Max. current load per module/slot [A] : 4; Max. current load total [A] : 4; Ambient temperature [°C] : -25...90; Note on ambient temperature : cULus: ...65 °C; Storage temperature [°C] : -25...55; Storage humidity [%] : 10...100; Other climatic conditions for storage according to stated class : 1K22/ DIN 60721-3-1; Materials : housing: PA orange; Sealing: FKM; Material nut : brass, nickel-plated; Connector: 2 x M12; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

Type

Y-splitters

Connection

Connector: 1 x M12; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm

No. of inputs/outputs

Number of analogue inputs: 1

Current consumption

< 60 mA

Voltage supply

24 V

Display

switching status: 16 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 65; IP 67; IP 68; IP 69K

Weight

36 g

Dimensions

20 x 30 x 129.5 mm
