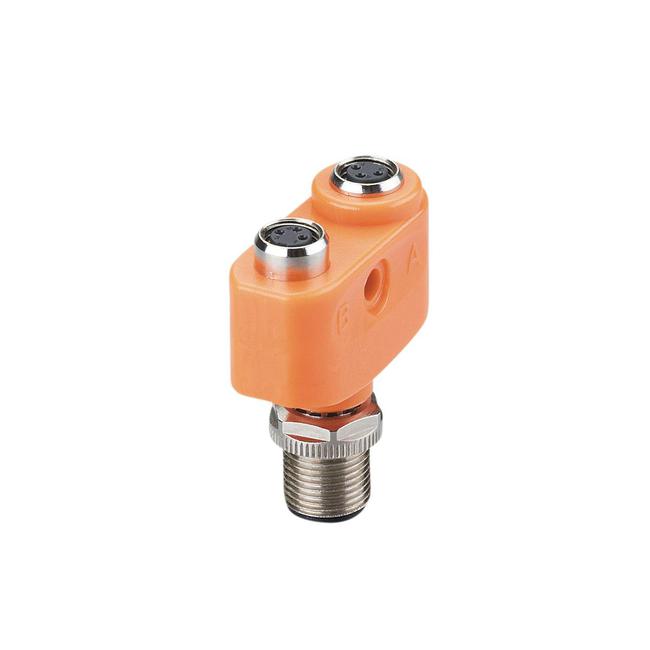

EBC112 ifm ⍾ ZDO2F030MSS0000-00STGH040MSS

Y-splitter; Operating voltage [V] : < 50 AC / < 60 DC; (cULus: 30 AC / 42 DC); Protection class : III; Max. current load total [A] : 3; Ambient temperature [°C] : -25...90; Note on ambient temperature : cULus: ...65 °C; Materials : housing: PA orange; Sealing: FKM; Material nut : brass, nickel-plated; Connector: 1 x M12; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm; Connector: 2 x M8; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.3...0.5 Nm

Type

Y-splitters

Connection

Connector: 8 x M8; Moulded body: PBT-GF 20 / brass, nickel-plated; Contacts: gold-plated

No. of inputs/outputs

Number of analogue inputs: 1

Current consumption

< 60 mA

Voltage supply

24 V

Display

switching status: 16 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 65; IP 67; IP 68; IP 69K

Weight

30.2 g

Dimensions

20 x 30 x 129.5 mm
