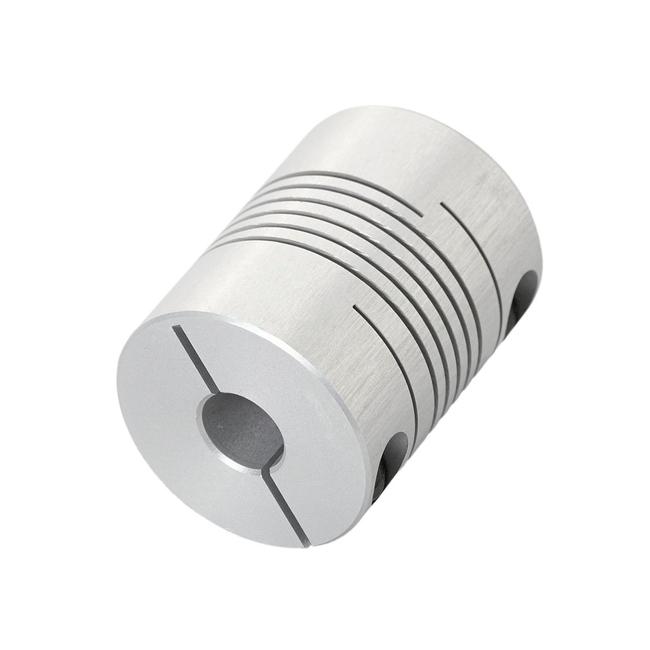

E60209 ifm ⍾ COUPLING 25-95-10-32-KV

Flexible coupling for encoders; Materials : aluminium; External diameter D [mm] : 25; Inside diameter A1 [mm] : 10; Inside diameter A2 [mm] : 9,525 mm / 3/8" / 3/8 inch; Length L [mm] : 32; Depth of the clamping hub [mm] : 8; Clamp screw [mm] : M3 x 10 ISO4762 (2 x); Max. revolution, mechanical [U/min] : 6000; Max. axial shaft misalignment [mm] : ± 0,5; Max. radial shaft misalignment [mm] : ± 0,35; Max. angular displacement [°] : ± 4,0

Type

Couplings and bearings

Connection

Connector: 1 x M18, angled; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated

Current consumption

< 47 mA

Display

colour display 1,44", 128 x 128 pixels | 2 x LED, yellow

Degree of protection

IP 67

Weight

33.4 g

Dimensions

Ø 25 / L = 32 mm
