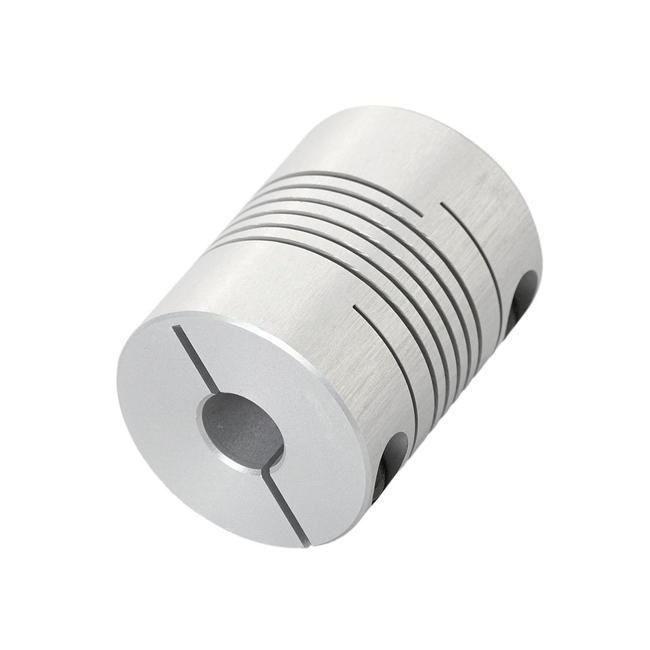

E60208 ifm ⍾ COUPLING 30-10-12-38-KV

Flexible coupling for encoders; Materials : aluminium; External diameter D [mm] : 30; Inside diameter A1 [mm] : 10; Inside diameter A2 [mm] : 12,7 mm / 1/2" / 1/2 inch; Length L [mm] : 38; Depth of the clamping hub [mm] : 10; Clamp screw [mm] : M4 x 12 ISO4762 (2 x); Max. revolution, mechanical [U/min] : 6000; Max. axial shaft misalignment [mm] : ± 0,5; Max. radial shaft misalignment [mm] : ± 0,35; Max. angular displacement [°] : ± 4,0

Type

Couplings and bearings

Connection

Connector: 1 x M18, angled; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated

Current consumption

< 47 mA

Display

colour display 1,44", 128 x 128 pixels | 2 x LED, yellow

Degree of protection

IP 67

Weight

58 g

Dimensions

Ø 30 / L = 38 mm
