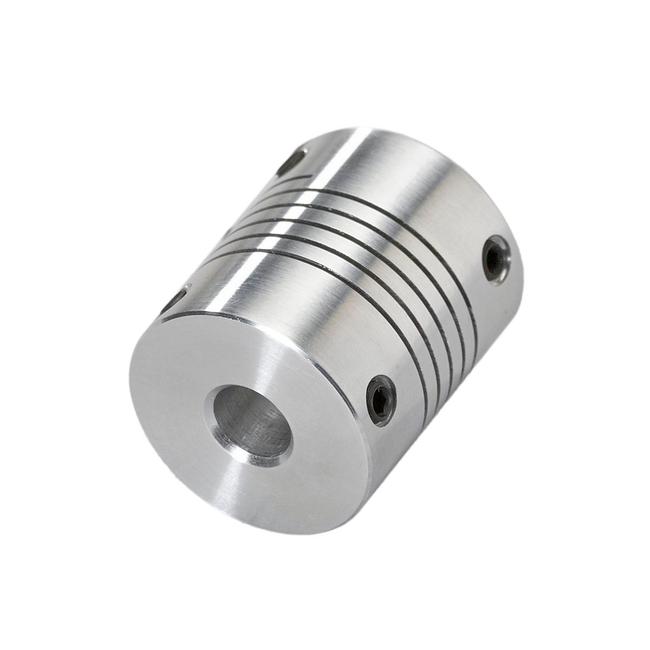

E60063 ifm ⍾ COUPLING 19,2-6-6-22-SV

Flexible coupling for encoders; Materials : aluminium; External diameter D [mm] : 19; Inside diameter A1 [mm] : 6; Inside diameter A2 [mm] : 6; Length L [mm] : 22; Depth of the clamping hub [mm] : 6; Clamp screw [mm] : M3; Max. revolution, mechanical [U/min] : 8000; Max. axial shaft misalignment [mm] : ± 0,4; Max. radial shaft misalignment [mm] : ± 0,25; Max. angular displacement [°] : ± 3,5

Type

Couplings and bearings

Connection

Cable: 0.15 m, PUR / PVC, black, Ø 6.8 mm; 4 x 0.25 mm²

Current consumption

< 47 mA

Display

colour display 1,44", 128 x 128 pixels | 2 x LED, yellow

Degree of protection

IP 68

Weight

32.2 g

Dimensions

Ø 19 / L = 22 mm
