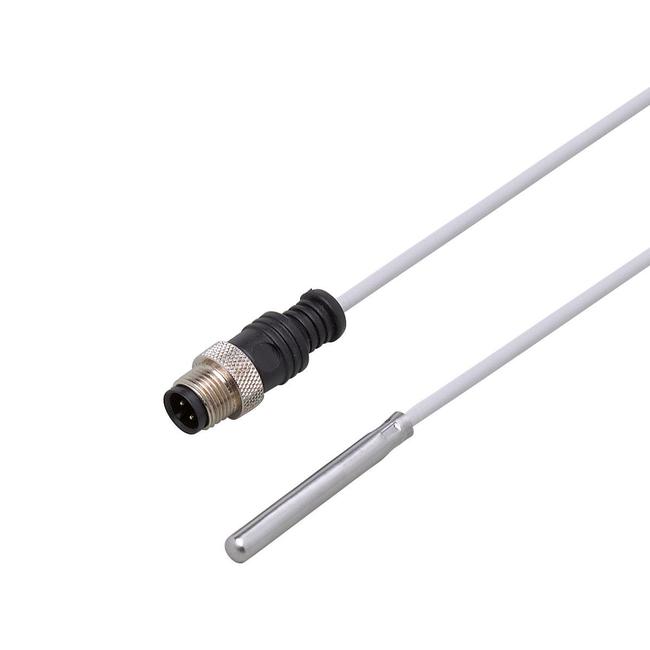

TS2256 ifm ⍾ TS-200KCID06-...../US/ /V

Temperature cable sensor with process connection; Protection class : III; Probe length L [mm] : 50; Measuring range : -50...250 °C: -58...482 °F; Note on measuring range : stationary: 280 °C / 536 °F (10000 h); Accuracy [K] : ± (0,15 K + 0,002 x|t|); Dynamic response T05 / T09 [s] : 11 / 37; (to DIN EN 60751); Materials : stainless steel (1.4571/316Ti ); PFA/PTFE; Materials (wetted parts) : stainless steel (1.4571/316Ti ); Process connection : diameter Ø 6 mm; Probe diameter [mm] : 6; Installation length EL [mm] : 50

Type

Temperature sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

< 50 mA

Voltage supply

24 V

Display

Display unit: 2 x LED, green | switching status: 2 x LED, yellow | measured values: alphanumeric display, red/green 4-digit

Degree of protection

IP 67

Weight

72.7 g

Dimensions

Ø 6 mm
