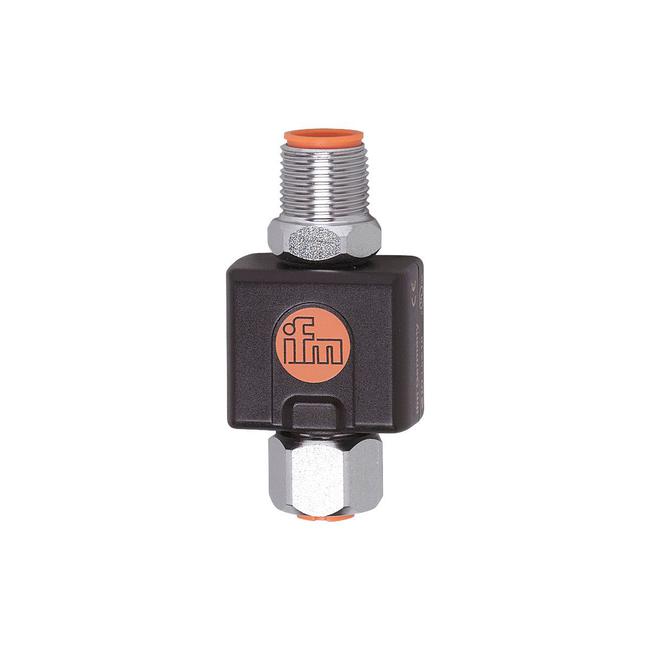

TP9237 ifm ⍾ TP- CEC -B-DVG/US/

Evaluation unit for PT100/PT1000 temperature sensors; Operating voltage [V] : 18...32 DC; Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : 1; Integrated watchdog : yes; Total number of outputs : 1; Output signal : analogue signal; IO-Link; (configurable); Number of analogue outputs : 1; Analogue voltage output [V] : 0...10; Min. load resistance [Ω] : 2000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Measuring range : -50...300 °C: -58...572 °F; Factory setting : 0...100 °C; Precision analogue output [K] : ± 0,3 + (± 0,1 % MS); Temperature coefficient [% of the span / 10 K] : 0,1; Max. measuring/display cycle [ms] : 100; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; Ambient temperature [°C] : -25...70; Storage temperature [°C] : -40...85; Thread designation : M12 x 1; Materials : PA; PET; Sealing material : FKM

Type

Temperature sensors

Connection

Connector: 1 x M12; Moulded body: TPU; Locking: stainless steel (1.4404 / 316L); Sealing: FKM; Contacts: gold-plated

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 50 mA

Voltage supply

24 V

Display

Display unit: 2 x LED, green | switching status: LED, yellow | measured values: alphanumeric display, red/green 4-digit

Degree of protection

IP 67

Weight

40 g

Dimensions

M12 x 1 mm
