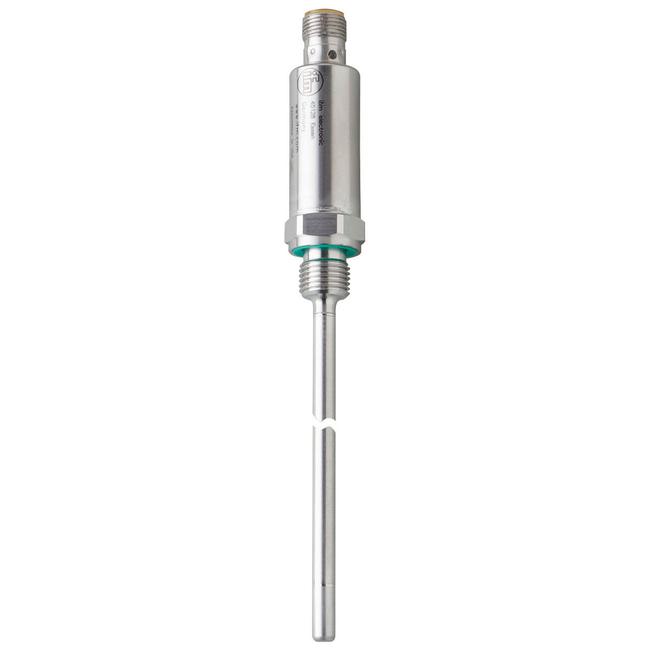

TA2135 ifm ⍾ TA-100CLER14-A-ZVG/US

Temperature transmitter; Operating voltage [V] : 18...32 DC; ("supply class 2" to cULus); Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : 1; Total number of outputs : 1; Output signal : analogue signal; IO-Link; (configurable); Number of analogue outputs : 1; Analogue current output [mA] : 4...20; Max. load [Ω] : 250; ((18...19 V); 19...32 V: 300 Ω); Short-circuit protection : yes; Overload protection : yes; Measuring range [°C] : -50...150; Factory setting : -50...150 °C; Resolution of analogue output [K] : 0.04; Precision analogue output [K] : ± 0,3 + (± 0,1 % MS); Temperature coefficient [% of the span / 10 K] : 0,1; (in case of deviation from the reference condition 25 ± 5 °C); Dynamic response T05 / T09 [s] : 1 / 3; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; Ambient temperature [°C] : -25...80; Storage temperature [°C] : -40...100; Materials : stainless steel (1.4404 / 316L); PEI; FKM; Materials (wetted parts) : stainless steel (1.4404 / 316L); O-ring: FKM; Tightening torque [Nm] : 35; Process connection : threaded connection G 1/4; Probe diameter [mm] : 6; Installation length EL [mm] : 100

Connection: Connector: 1 x M12; Contacts: gold-plated
No. of inputs/outputs: Number of analogue outputs: 1
Current consumption: < 50 mA
Voltage supply: 24 V
Display: operating status: 1 x LED, green
Degree of protection: IP 67; IP 68; IP 69K
Weight: 96 g
Dimensions: Ø 18.7 mm
