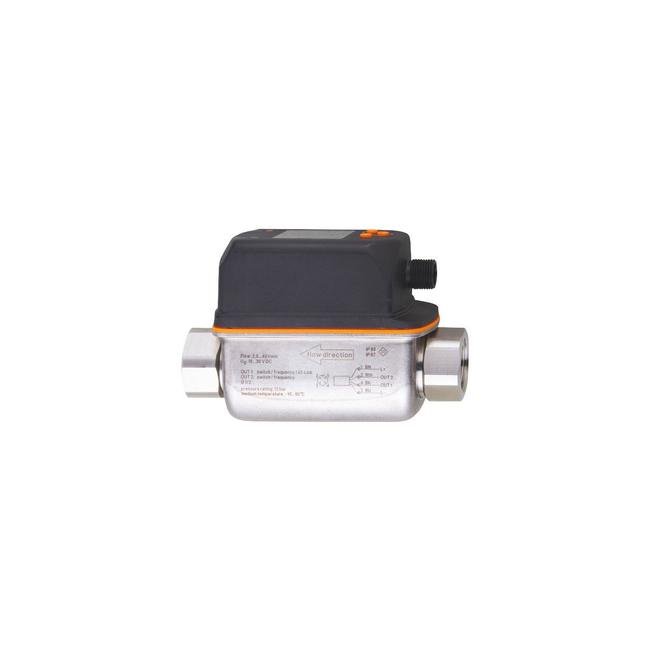

SV5614 ifm ⍾ SVN12XXX50KG/US-100

Vortex flow meter with display; Operating voltage [V] : 18...30 DC; Min. insulation resistance [MΩ] : 100; (500 V DC); Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : < 3; Total number of outputs : 2; Output signal : analogue signal; Number of analogue outputs : 2; Analogue current output [mA] : 4...20; Max. load [Ω] : 500; Short-circuit protection : yes; Overload protection : yes; Measuring range : 32...634 gph: 0.55...10.55 gpm; Display range : 0...760 gph: 0...12.7 gpm; Resolution : 2 gph: 0.05 gpm; Analogue start point ASP : 0...508 gph: 0...8.45 gpm; Analogue end point AEP : 126...634 gph: 2.1...10.55 gpm; In steps of : 2 gph: 0.05 gpm; Measuring dynamics : 1:20; Dynamic response T05 / T09 [s] : T09 = 6; Response time [s] : 1; (dAP = 0); Damping for the switching output dAP [s] : 0...5; Parameter setting options : Damping for the analogue output dAA; Display unit; Ambient temperature [°F] : 32...140; Note on ambient temperature : medium temperature < 176 °F | medium temperature < 194 °F: 32...122 °F; Storage temperature [°F] : -4...176; Materials : stainless steel (1.4404 / 316L); PC; PBT+PC-GF30; PPS; TPE-U; Materials (wetted parts) : stainless steel (1.4404 / 316L); ETFE; PA 6T; PPS; FKM; Tightening torque [Nm] : 30; Process connection : threaded connection 1/2" NPT DN10

Type

Flow sensors / flow meters

Connection

Connector: 1 x M12; Contacts: gold-plated

No. of inputs/outputs

Number of analogue outputs: 2

Current consumption

< 30 mA

Voltage supply

24 V

Display

Display unit: 6 x LED, green (l/min, m³/h, gpm, gph, °C, °F) | measured values: alphanumeric display, 4-digit | programming: alphanumeric display, 4-digit

Degree of protection

IP 65; IP 67

Weight

466 g

Dimensions

104.5 x 32.5 x 113.6 mm
