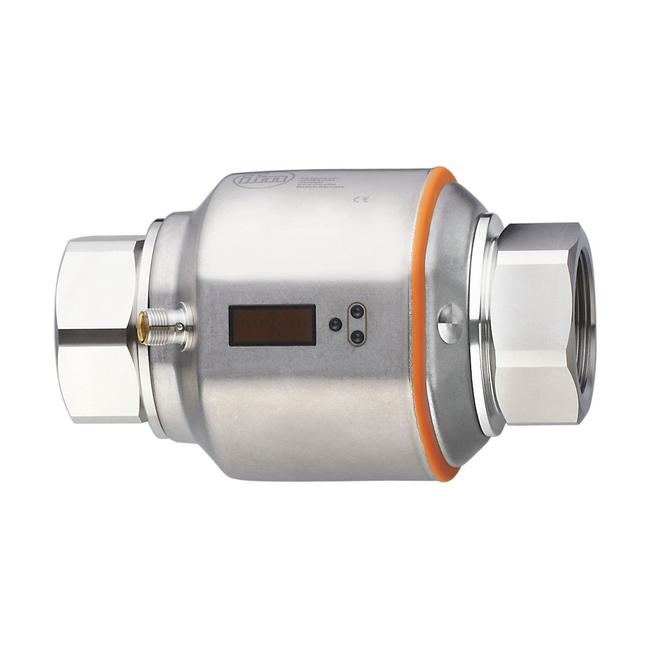

SM9604 ifm ⍾ SMN32XGX50KG/US-100

Operating voltage [V] : 18...32 DC; (according to EN 50178 SELV/PELV); Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : 5; Total number of outputs : 2; Output signal : analogue signal; Number of analogue outputs : 2; Analogue current output [mA] : 4...20; (≤ 22 mA); Max. load [Ω] : 500; Measuring range : 5...300 l/min: 0.3...18 m³/h: 80...4755 gph: 1.3...79.3 gpm; Display range : -360...360 l/min: -21.6...21.6 m³/h: -5705...5705 gph: -95.1...95.1 gpm; Resolution : 0.5 l/min: 0.02 m³/h: 5 gph: 0.1 gpm; Analogue start point ASP : 0...240 l/min: 0...14.4 m³/h: 0...3800 gph: 0...63.4 gpm; Analogue end point AEP : 60...300 l/min: 3.6...18 m³/h: 955...4755 gph: 15.9...79.3 gpm; Low flow cut-off LFC : < 15 l/min: < 0.9 m³/h: < 240 gph: < 4 gpm; In steps of : 0.5 l/min: 0.02 m³/h: 5 gph: 0.1 gpm; Measuring dynamics : 1:60; Dynamic response T05 / T09 [s] : T09 = 3 (Q > 15 l/min) / T09 = 3 (Q > 4 gpm); Response time [s] : 0.35; (dAP = 0); Damping for the switching output dAP [s] : 0...5; Parameter setting options : display can be deactivated; Display unit; empty pipe detection; Ambient temperature : -10...60 °C: 14...140 °F; Storage temperature : -25...80 °C: -13...176 °F; Materials : stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEI; FKM; PBT-GF20; TPE-U; Materials (wetted parts) : stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; FKM; Process connection : threaded connection 1 1/2" NPT DN40; Display unit : l/min; m³/h; gpm; gph; °C; °F; Items supplied : Label

Type

Flow sensors / flow meters

Connection

Connector: 1 x M12; Contacts: gold-plated

No. of inputs/outputs

Number of analogue outputs: 2

Current consumption

< 150 mA

Voltage supply

24 V

Display

Display unit: 6 x LED, green (l/min, m³/h, gpm, gph, °C, °F) | function display: 1 x LED, yellow (10³) | measured values: alphanumeric display, 4-digit | programming: alphanumeric display, 4-digit

Degree of protection

IP 65; IP 67

Weight

2745 g

Dimensions

Ø 23 / L = 142 mm
