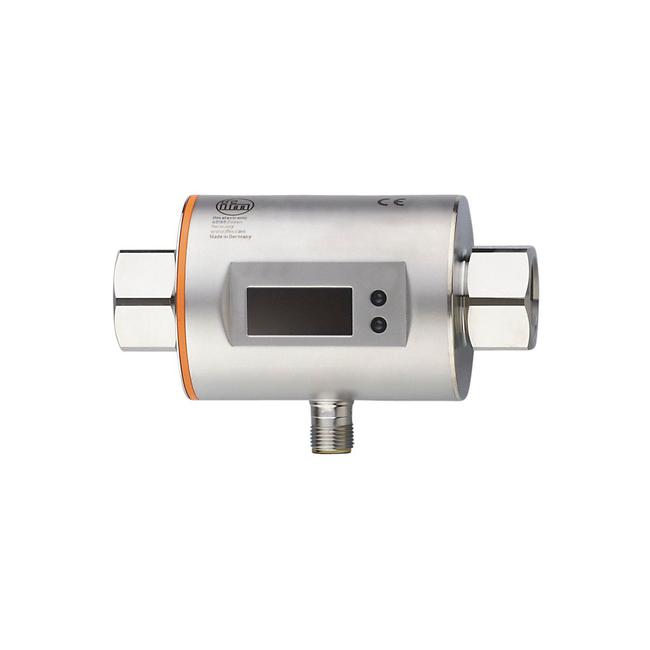

SM6604 ifm ⍾ SMN12GGX50KG/US-100

Operating voltage [V] : 20...30 DC; (according to EN 50178 SELV/PELV); Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : 5; Total number of outputs : 2; Output signal : analogue signal; Number of analogue outputs : 2; Analogue current output [mA] : 4...20; (scalable); Max. load [Ω] : 500; Overload protection : yes; Measuring range : 0.1...25 l/min: 0.03...6.6 gpm; Display range : -30...30 l/min: -7.92...7.92 gpm; Resolution : 0.02 l/min: 0.01 gpm; Analogue start point ASP : 0...20 l/min: 0...5.28 gpm; Analogue end point AEP : 5...25 l/min: 1.32...6.6 gpm; In steps of : 0.02 l/min: 0.01 gpm; Dynamic response T05 / T09 [s] : T09 = 20 (Q > 1 l/min); Response time [s] : 0.15; (dAP = 0, T19); Damping for the switching output dAP [s] : 0...3; Ambient temperature [°C] : -10...60; Storage temperature [°C] : -25...80; Materials : stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE; Materials (wetted parts) : stainless steel (1.4404 / 316L); PEEK; FKM; Process connection : threaded connection 1/2" NPT DN15; Display unit : l/min; m³/h; gpm; gph; °C; °F

Type

Flow sensors / flow meters

Connection

Connector: 1 x M12; Contacts: gold-plated

No. of inputs/outputs

Number of analogue outputs: 2

Current consumption

120; (24 V) mA

Voltage supply

24 V

Display

Display unit: 6 x LED, green (l/min, m³/h, gpm, gph, °C, °F) | measured values: alphanumeric display, 4-digit | programming: alphanumeric display, 4-digit

Degree of protection

IP 67

Weight

566.5 g

Dimensions

Ø 23 / L = 142 mm
