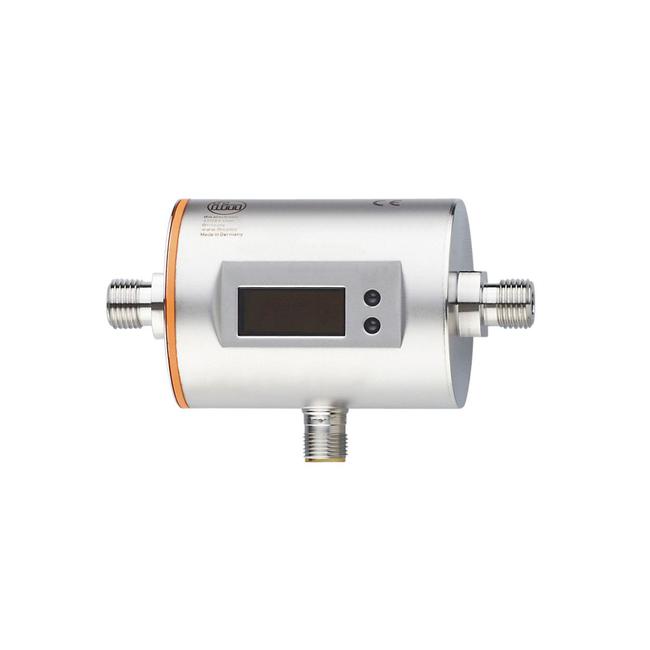

SM4000 ifm ⍾ SMR14DXXFRKG/US-100

Magnetic-inductive flow meter; Operating voltage [V] : 18...30 DC; (according to EN 50178 SELV/PELV); Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : 5; Inputs : counter reset; Total number of outputs : 2; Output signal : switching signal; analogue signal; pulse signal; IO-Link; (configurable); Electrical design : PNP/NPN; Number of digital outputs : 2; Output function : normally open / normally closed; (parameterisable); Max. voltage drop switching output DC [V] : 2; Permanent current rating of switching output DC [mA] : 200; Number of analogue outputs : 1; Analogue current output [mA] : 4...20; (scalable); Max. load [Ω] : 500; Analogue voltage output [V] : 0...10; (scalable); Min. load resistance [Ω] : 2000; Pulse output : flow rate meter; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Measuring range : 5...3000 ml/min: 0.005...3 l/min; Display range [ml/min] : -1999...3600; Resolution [ml/min] : 1; Set point SP [ml/min] : 20...3000; Reset point rP [ml/min] : 5...2984; Analogue start point ASP [ml/min] : 0...2400; Analogue end point AEP [ml/min] : 600...3000; Low flow cut-off LFC [ml/min] : < 60; Pulse value : 1...3000 ml; Pulse length [s] : 0,008...2; Dynamic response T05 / T09 [s] : T09 = 40 (Q > 1 l/min); Response time [s] : 0.15; (dAP = 0, T19); Delay time programmable dS, dr [s] : 0...50; Damping for the switching output dAP [s] : 0...5; Parameter setting options : Flow monitoring; quantity meter; Preset counter; Temperature monitoring; hysteresis / window; normally open / normally closed; switching logic; current/voltage/pulse output; start-up delay; display can be deactivated; Display unit; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9; Profiles : Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis; SIO mode : yes; Required master port type : A; Process data analogue : 3; Process data binary : 2; Min. process cycle time [ms] : 4; Supported DeviceIDs : Type of operation: DeviceID | Default: 671; Ambient temperature [°C] : -10...60; Storage temperature [°C] : -25...80; Materials : stainless steel (1.4404 / 316L); PBT-GF20; PC; FKM; TPE; Materials (wetted parts) : stainless steel (1.4404 / 316L); PEEK; FKM; Process connection : threaded connection G 1/4 DN6 flat seal

Type

Flow sensors / flow meters

Connection

Connector: 1 x M12; Contacts: gold-plated

No. of inputs/outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Current consumption

< 80 mA

Voltage supply

24 V

Display

Display unit: 6 x LED, green (ml/min, l/h, l, m³, °C, 10³) | switching status: 2 x LED, yellow | measured values: alphanumeric display, 4-digit | programming: alphanumeric display, 4-digit

Degree of protection

IP 67

Weight

536.5 g

Dimensions

Ø 23 / L = 142 mm
