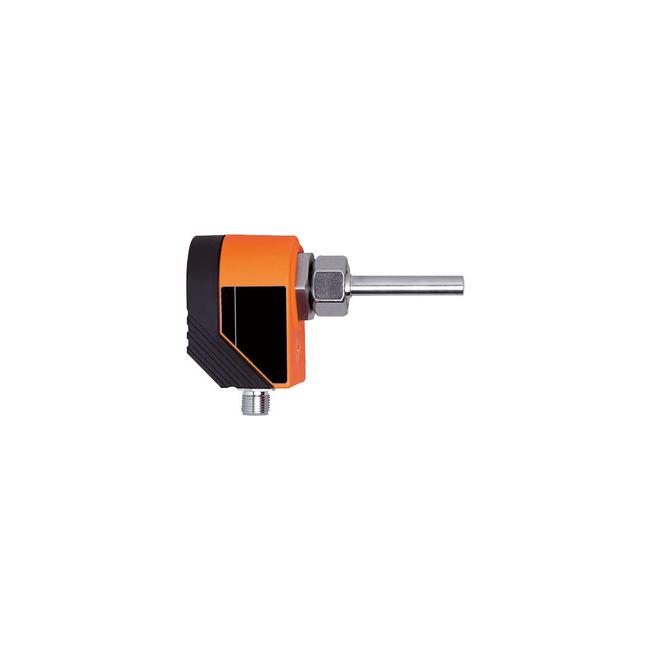

SI1100 ifm ⍾ SID10ADTFPKG/US-100-IPF

Flow monitor; Response time [s] : 1...10; Operating voltage [V] : 20...36 DC; (according to EN 50178 SELV/PELV); Reverse polarity protection : yes; Power-on delay time [s] : 15; (optically indicated); Total number of outputs : 1; Output signal : switching signal; Electrical design : PNP; Number of digital outputs : 1; Output function : normally open / normally closed; (parameterisable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 400; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Probe length L [mm] : 45; Temperature gradient [K/min] : 300; Adjustment of the switch point : pushbutton; Ambient temperature [°C] : -25...80; Thread designation : M18 x 1.5; Materials : PBT-GF20; Materials (wetted parts) : titanium (3.7035); O-ring: FKM 80 Shore A; Process connection : M18 x 1,5 internal thread

Type

Flow sensors / flow meters

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 1

Current consumption

< 80 mA

Voltage supply

24 V

Display

function: 10 x LED, three-colour

Degree of protection

IP 67

Weight

251.5 g

Dimensions

M18 x 1.5 mm
