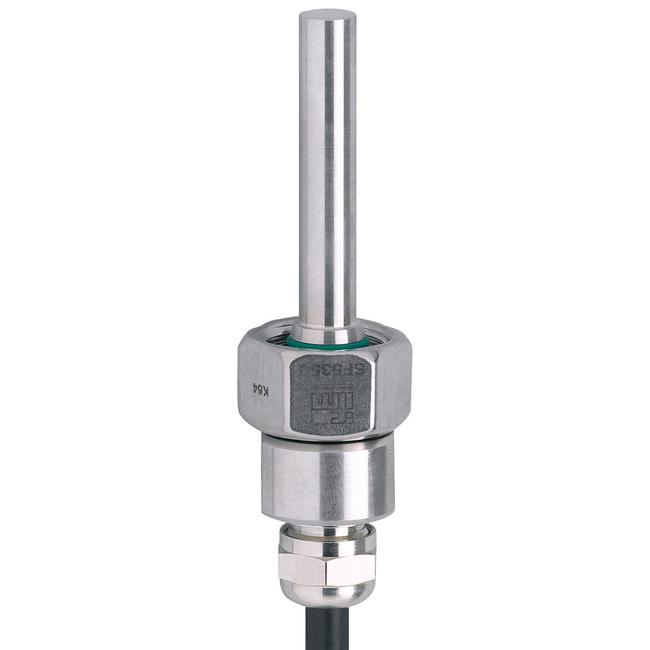

SF5350 ifm ⍾ SFD10ADB /6M

Flow sensor for connection to an evaluation unit; Connection to control monitor : VS3000; Probe length L [mm] : 45; Setting range [cm/s] : 3...300; Greatest sensitivity [cm/s] : 3...60; Setting range [cm/s] : 200...3000; Greatest sensitivity [cm/s] : 200...800; Temperature gradient [K/min] : 300; Response time [s] : 1...10; Housing : for adapter; Thread designation : M18 x 1.5; Materials : stainless steel (1.4404 / 316L); Materials (wetted parts) : stainless steel (1.4404 / 316L); O-ring: FKM 80 Shore A; Process connection : M18 x 1,5 internal thread

Type

Flow sensors / flow meters

Connection

Cable: 6 m, PUR; Maximum cable length: 100 m; 5 x 0.34 mm²

No. of inputs/outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Current consumption

< 100 mA

Voltage supply

24 V

Display

Display unit: 5 x LED, green (Nl/min, Nm³/h, Nm/s, Nm³, °C) | function display: 1 x LED, green | switching status: 2 x LED, yellow | measured values: alphanumeric display, 4-digit | programming: alphanumeric display, 4-digit

Degree of protection

IP 67

Weight

413.5 g

Dimensions

M18 x 1.5 mm
