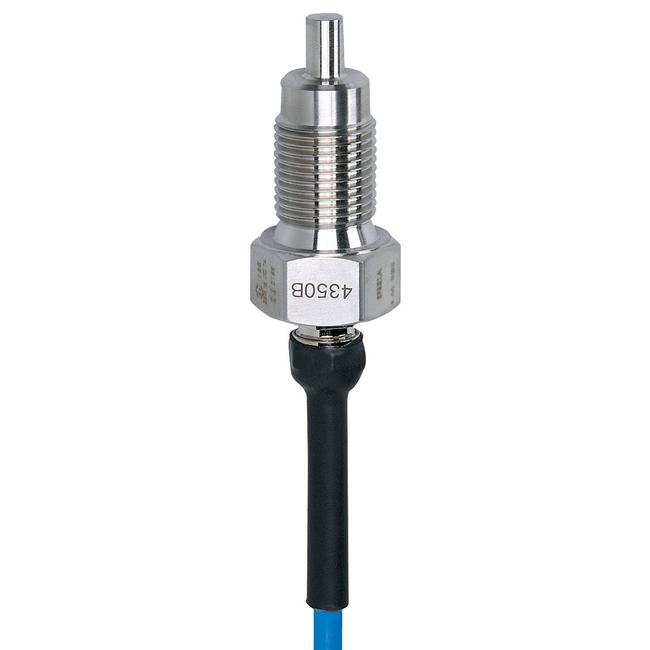

SF311A ifm ⍾ SFR12ADB/1/2G /6M

Flow sensor for connection to an evaluation unit; Response time [s] : 1...10; Connection to control monitor : VS2000 Exi (PTB 01 ATEX 2075); Probe length L [mm] : 12; Temperature gradient [K/min] : 15; Ambient temperature [°C] : -20...60; Storage temperature [°C] : -20...85; Max. internal capacitance [nF] : 1.2; Max. internal inductance [µH] : 6; Temperature class : T4; Housing : threaded type; Materials : stainless steel (1.4404 / 316L); Materials (wetted parts) : stainless steel (1.4404 / 316L); Process connection : G 1/2 external thread; Installation length EL [mm] : 45

Type

Flow sensors / flow meters

Connection

Cable: 6 m, TPE-S; Maximum cable length: 100 m; 5 x 0.34 mm²

No. of inputs/outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Current consumption

< 100 mA

Voltage supply

24 V

Display

Display unit: 5 x LED, green (Nl/min, Nm³/h, Nm/s, Nm³, °C) | function display: 1 x LED, green | switching status: 2 x LED, yellow | measured values: alphanumeric display, 4-digit | programming: alphanumeric display, 4-digit

Degree of protection

IP 67

Weight

467 g

Dimensions

M12 x 1 mm
