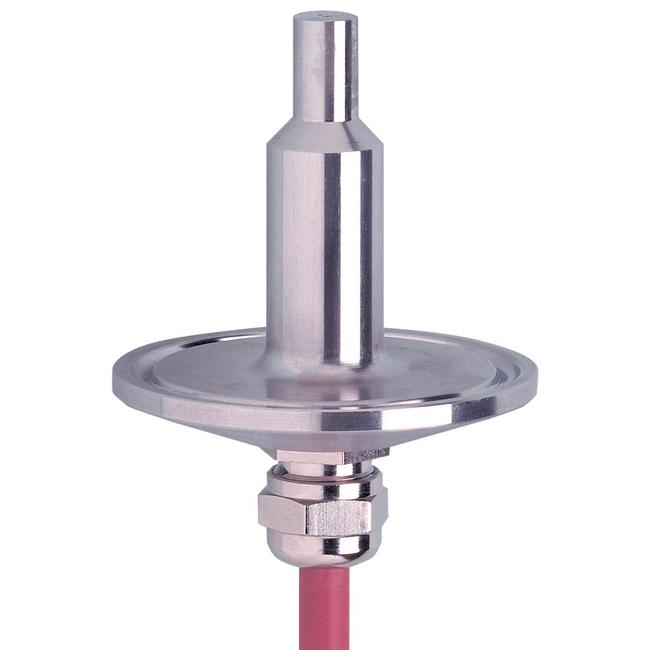

SF0516 ifm ⍾ SFG14ZBB/6M

Flow sensor for connection to an evaluation unit; Response time [s] : 1...10; Connection to control monitor : VS3000; Probe length L [mm] : 42; Temperature gradient [K/min] : 15; Materials : stainless steel (1.4571/316Ti ); Materials (wetted parts) : stainless steel (1.4571/316Ti ); Process connection : Clamp DN25...DN40 (1...1,5") DIN 32676 (ISO 2852)

Type

Flow sensors / flow meters

Connection

Cable: 6 m, silicone; Maximum cable length: 100 m; 5 x 0.34 mm²

No. of inputs/outputs

Number of digital outputs: 2; Number of analogue outputs: 1

Current consumption

< 100 mA

Voltage supply

24 V

Display

Display unit: 5 x LED, green (Nl/min, Nm³/h, Nm/s, Nm³, °C) | function display: 1 x LED, green | switching status: 2 x LED, yellow | measured values: alphanumeric display, 4-digit | programming: alphanumeric display, 4-digit

Degree of protection

IP 67

Weight

485 g

Dimensions

Ø 58 / L = 80.2 mm
