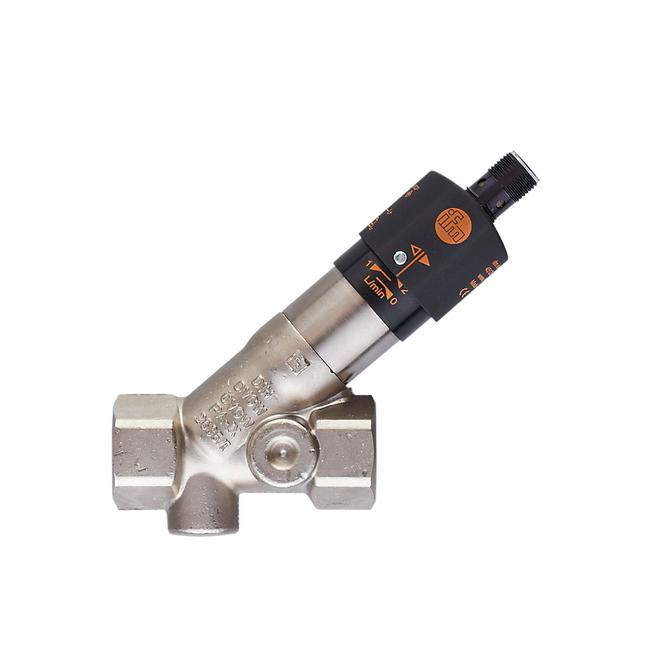

SBY321 ifm ⍾ SBY12IR0BPKG/US

Flow sensor with integrated backflow prevention; Operating voltage [V] : 10...30 DC; (to SELV/PELV); Protection class : III; Reverse polarity protection : yes; Total number of outputs : 1; Output signal : switching signal; Electrical design : PNP; Number of digital outputs : 1; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Short-circuit protection : yes; Overload protection : yes; Setting range [l/min] : 0.2...4; Repeatability [% of the final value] : 1; Hysteresis [l/min] : 0,1...0,2; Measuring error [% of the final value] : ± 5; Response time [s] : < 0.01; Ambient temperature [°C] : 0...60; Storage temperature [°C] : -15...80; Materials : brass chemically nickel-plated; aluminium anodised; PA; Materials (wetted parts) : stainless steel (1.4310 / 301); stainless steel (1.4401 / 316); PBT; brass chemically nickel-plated; PPS; O-ring: FKM Polyolefin; Process connection : Rp 1/2; Switching cycles mechanical : 10 million; Items supplied : Allen key

Type

Flow sensors / flow meters

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 1

Current consumption

< 15 mA

Voltage supply

24 V

Display

switching status: 4 x LED, yellow

Degree of protection

IP 65; IP 67

Weight

434 g

Dimensions

Ø 58 / L = 80.2 mm
