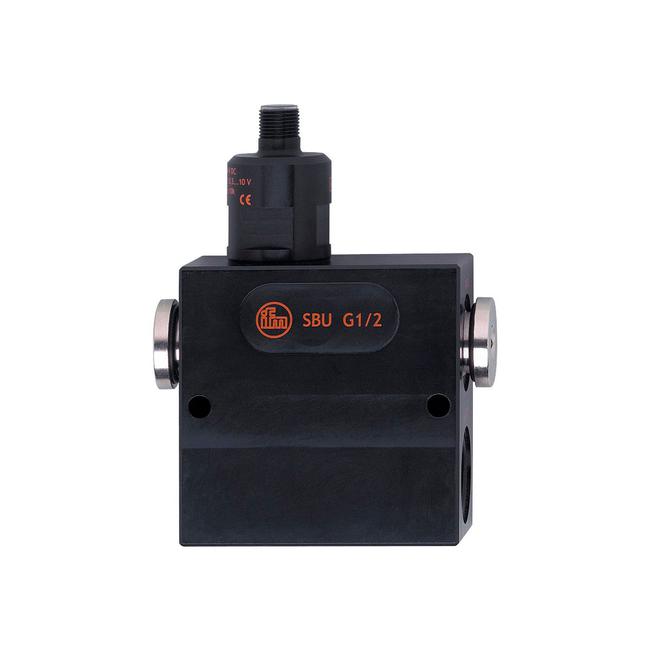

SBU623 ifm ⍾ SBU12DI040KG/US

Flow transmitter with integrated backflow prevention; Operating voltage tolerance [%] : -15...10; Operating voltage [V] : 24 DC; (to SELV/PELV); Protection class : III; Reverse polarity protection : yes; Output signal : analogue signal; Analogue voltage output [V] : 0.5...10; Min. load resistance [Ω] : 10000; Short-circuit protection : yes; Overload protection : yes; Measuring range [l/min] : 0.3...25; Flow range [l/min] : 75; Repeatability [% of the final value] : 1; Measuring error [% of the final value] : ± 5; Response time [s] : < 0.01; Ambient temperature [°C] : 0...60; Storage temperature [°C] : -15...80; Materials : aluminium anodised; PA; Materials (wetted parts) : stainless steel (1.4401 / 316); brass; aluminium anodised; PU; O-ring: FKM; Process connection : G 1/2; Switching cycles mechanical : 10 million; Items supplied : sealing plugs

Type

Flow sensors / flow meters

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 1

Current consumption

10 mA

Voltage supply

24 V

Display

switching status: 4 x LED, yellow

Degree of protection

IP 65; IP 67

Weight

740.5 g

Dimensions

Ø 58 / L = 80.2 mm
