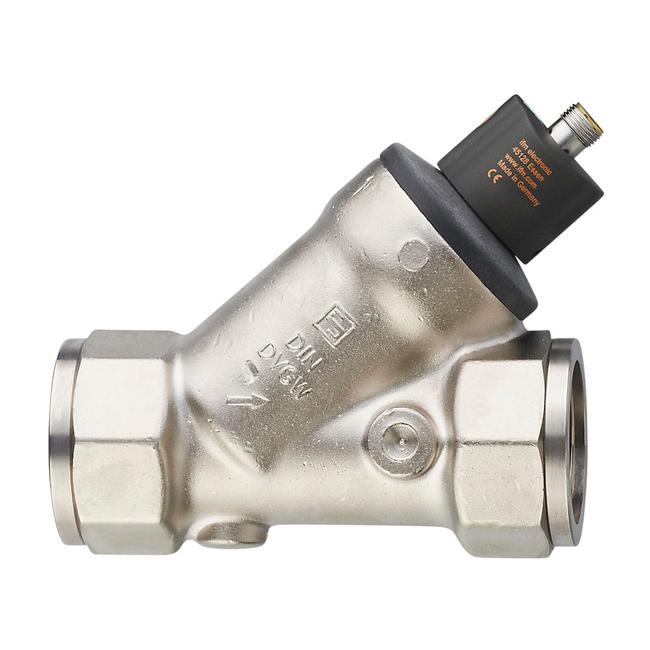

SBG457 ifm ⍾ SBG54HF010KG/US

Flow transmitter with integrated backflow prevention; Operating voltage [V] : 18...32 DC; (to SELV/PELV); Protection class : III; Reverse polarity protection : yes; Output signal : analogue signal; Analogue current output [mA] : 4...20; Max. load [Ω] : 500; Short-circuit protection : yes; Overload protection : yes; Measuring range [l/min] : 8...200; Repeatability [% of the final value] : 1; Measuring error [% of the final value] : ± 5; Response time [s] : < 0.01; Ambient temperature [°C] : 0...60; Storage temperature [°C] : -15...80; Materials : brass chemically nickel-plated; PP; stainless steel (1.4404 / 316L); aluminium anodised; PA; Materials (wetted parts) : stainless steel (1.4401 / 316); brass; brass chemically nickel-plated; PP; PPS; O-ring: FKM; Process connection : threaded connection G 1 1/4; Switching cycles mechanical : 10 million

Type

Flow sensors / flow meters

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 1

Current consumption

< 35 mA

Voltage supply

24 V

Display

switching status: 4 x LED, yellow

Degree of protection

IP 65; IP 67

Weight

1898.8 g

Dimensions

Ø 58 / L = 80.2 mm
