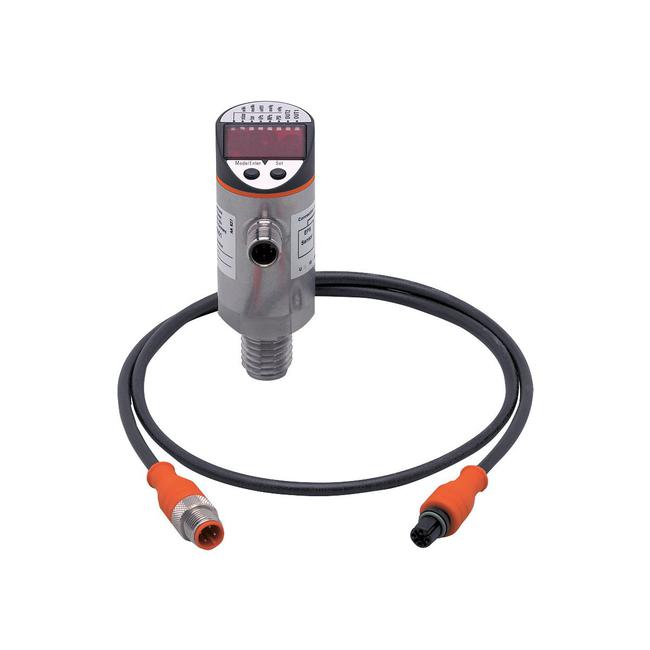

PP2001 ifm ⍾ PP-PRG- /QFRKG/US/ /

Programming/display unit; Operating voltage [V] : 18...32 DC; Min. insulation resistance [MΩ] : 100; (500 V DC); Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : 1.5...10; (depending on the connected sensor); Max. voltage drop switching output DC [V] : 2; Permanent current rating of switching output DC [mA] : 250; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Max. measuring/display cycle [ms] : 200; Parameter setting options : depending on the connected sensor; Ambient temperature [°C] : -25...80; Storage temperature [°C] : -40...100; Materials : stainless steel (1.4404 / 316L); CO-PC; PBT; FKM; Items supplied : jumper cables: 0,8 m, for parameter setting in the offline mode

Type

Pressure sensors

Connection

Connector: 1 x M12; Contacts: gold-plated

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

< 40 mA

Voltage supply

24 V

Display

Display unit: 6 x LED, green | switching status: 2 x LED, yellow | function display: alphanumeric display, 4-digit | measured values: alphanumeric display, 4-digit

Degree of protection

IP 67; (for unit with screwed-on connectors)

Weight

333.5 g

Dimensions

100 x 34 x 48 mm
