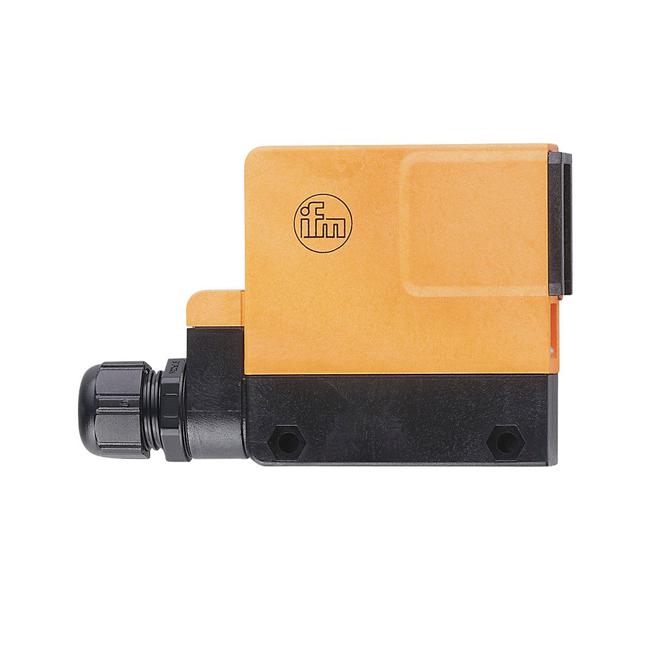

OS5013 ifm ⍾ OSE-FPKG

Through-beam sensor receiver; Operating voltage [V] : 10...55 DC; Protection class : II; Reverse polarity protection : yes; Type of light : infrared light; Wave length [nm] : 880; Electrical design : PNP; Output function : light-on/dark-on mode; (programmable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 250; Switching frequency DC [Hz] : 100; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Transmitter / receiver : receiver; Range [m] : < 20; Range adjustable : yes; Ambient temperature [°C] : -25...80; Housing : rectangular; Materials : PPO modified; Lens material : glass; Lens alignment : side lens; Items supplied : Angle bracket: 1, E20210 | screwdrivers

Type

Photoelectric sensors

Connection

terminals: ...1.5 mm²; Cable gland: M20 X 1.5

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

20; ((24 V)) mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 65

Weight

274.5 g

Dimensions

80 x 28 x 95 mm
