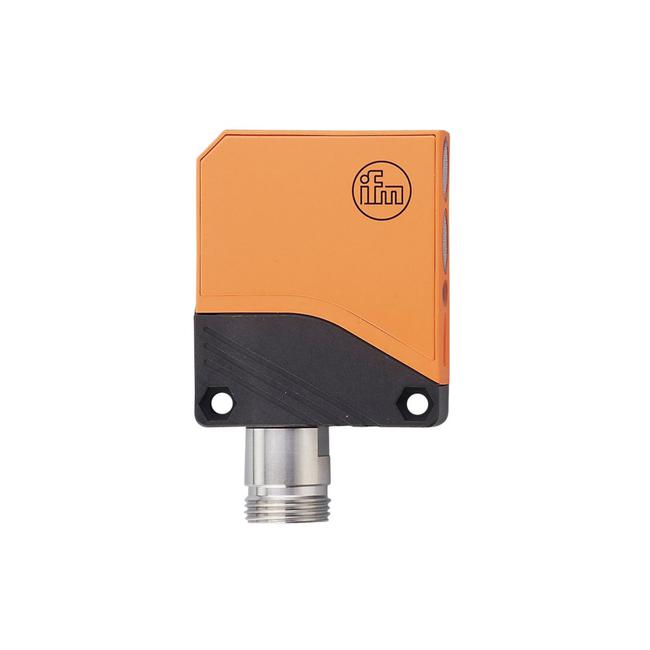

OL0010 ifm ⍾ OLP-FKOA/SL/LS-500

Retro-reflective sensor; Frequency AC [Hz] : 47...63; Operating voltage [V] : 20...250 AC/DC; Max. power consumption [VA] : 4; Protection class : I; Reverse polarity protection : no; Type of light : red light; Wave length [nm] : 660; Typ. lifetime [h] : 100000; Reference temperature for service life [°C] : 25; Electrical design : relay; Output function : light-on/dark-on mode; (programmable); Contact rating : 250 V AC / 3 A / 960 VA, 125 V DC / 5 A / 120 W; Switching frequency AC [Hz] : 10; Switching frequency DC [Hz] : 10; Short-circuit proof : no; Overload protection : no; Range referred to prismatic reflector [m] : 0.3...5; (Prismatic reflector Ø 80 E20005); Range adjustable : yes; Polarisation filter available : yes; Ambient temperature [°C] : -25...80; Housing : rectangular; Materials : PA; PBT; Lens material : PMMA; Lens alignment : side lens

Type

Photoelectric sensors

Connection

Connector: 1 x 7/8"

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

30; ((24 V)) mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green | function: 1 x LED, red

Degree of protection

IP 67

Weight

202.5 g

Dimensions

75 x 27 x 62 mm
