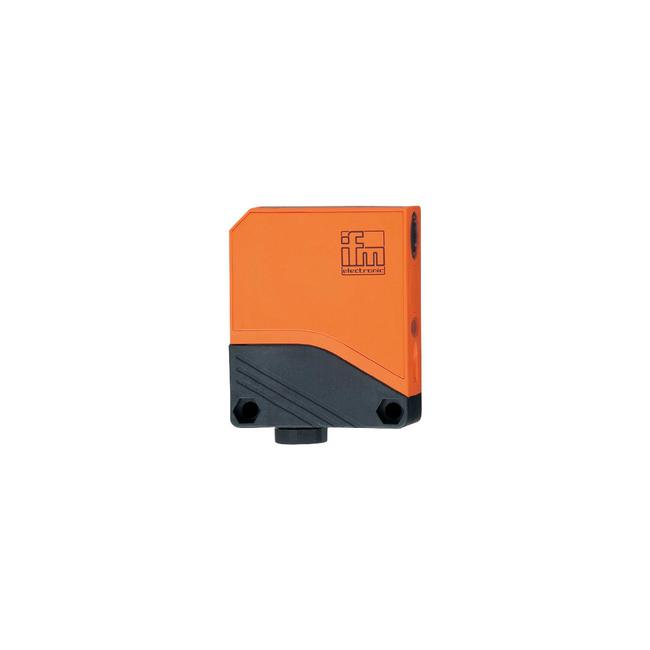

OL0007 ifm ⍾ OLE-FKOA

Through-beam sensor receiver; Frequency AC [Hz] : 47...63; Operating voltage [V] : 20...250 AC/DC; Max. power consumption [VA] : 4; Protection class : II; Reverse polarity protection : no; Type of light : infrared light; Wave length [nm] : 880; Electrical design : relay; Output function : light-on/dark-on mode; (programmable); Contact rating : 250 V AC / 3 A / 950 VA, 125 V DC / 5 A / 120 W; Switching frequency AC [Hz] : 10; Switching frequency DC [Hz] : 10; Short-circuit proof : no; Overload protection : no; Transmitter / receiver : receiver; Range [m] : < 25; Ambient temperature [°C] : -25...80; Housing : rectangular; Materials : PA; PBT; Lens material : PMMA; Lens alignment : side lens

Type

Photoelectric sensors

Connection

terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

30; ((24 V)) mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green | function: 1 x LED, red

Degree of protection

IP 67

Weight

166.5 g

Dimensions

75 x 27 x 62 mm
