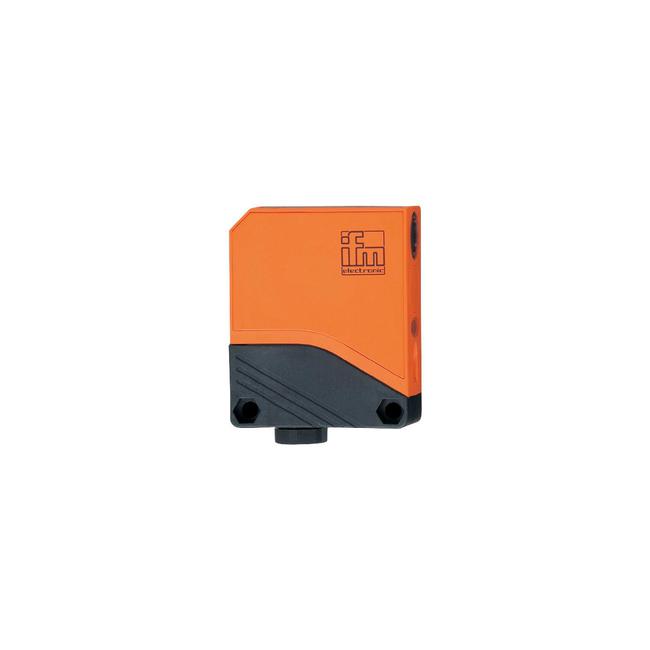

OL0006 ifm ⍾ OLS-OOOA

Through-beam sensor transmitter; Frequency AC [Hz] : 47...63; Operating voltage [V] : 20...250 AC/DC; Max. power consumption [VA] : 4; Protection class : II; Reverse polarity protection : no; Type of light : infrared light; Wave length [nm] : 880; Short-circuit proof : no; Overload protection : no; Transmitter / receiver : transmitter; Range [m] : < 25; Range adjustable : no; Max. light spot diameter [mm] : 2500; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -25...80; Housing : rectangular; Materials : PA; PBT; Lens material : PMMA; Lens alignment : side lens

Type

Photoelectric sensors

Connection

terminals: ...1.5 mm²; Cable sheath: Ø 4.5...10 mm; Cable gland: M16 X 1.5

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

30; ((24 V)) mA

Voltage supply

24 V

Display

operation: 1 x LED, green

Degree of protection

IP 67

Weight

163.5 g

Dimensions

75 x 27 x 62 mm
