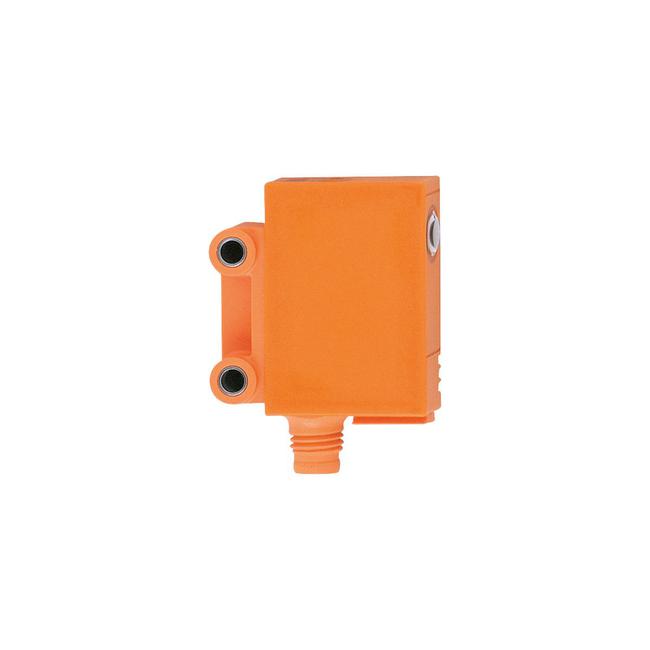

OJ5189 ifm ⍾ OJPGFNKG/SO/AS

Retro-reflective sensor for the detection of transparent objects; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 660; Electrical design : NPN; Output function : light-on/dark-on mode; (programmable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 2000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Range referred to prismatic reflector [m] : 0.2...1.5; (Prismatic reflector 50 x 50 mm E20722); Range adjustable : yes; Max. light spot diameter [mm] : 64; Light spot dimensions refer to : at maximum range; Polarisation filter available : yes; Ambient temperature [°C] : 0...60; Housing : rectangular; Materials : housing: ABS; LED window: SEPS; pushbutton: SEPS; Lens material : glass; Lens alignment : side lens; Electronic lock : yes; Items supplied : screws: 2 | spring washers: 2 | Nuts: 2

Type

Photoelectric sensors

Connection

Connector: 1 x M8

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

< 22 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green | function: 1 x LED, red

Degree of protection

IP 67

Weight

37.6 g

Dimensions

35 x 11 x 24 mm
