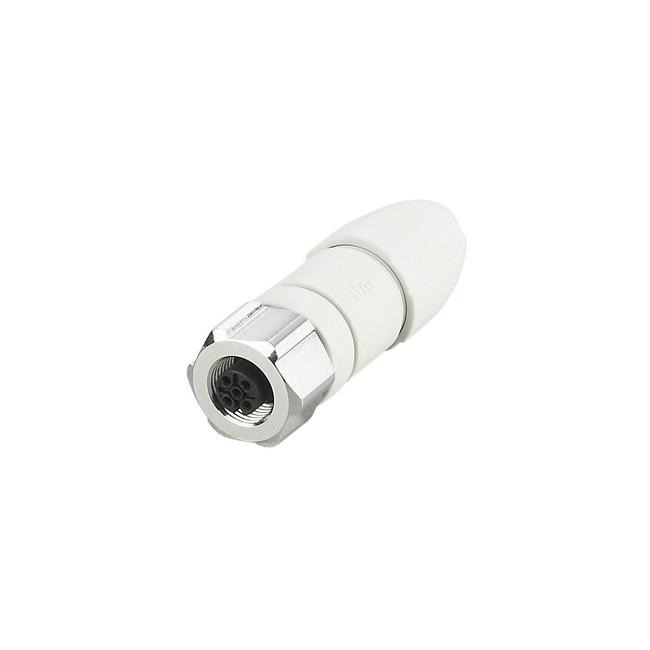

EVF565 ifm ⍾ SDOGH040VASFKPG

Wirable socket; Operating voltage [V] : < 250 AC / < 300 DC; Protection class : II; Max. current load total [A] : 4; (...40 °C); Ambient temperature [°C] : -25...100; Storage temperature [°C] : -25...55; Storage humidity [%] : 10...100; Other climatic conditions for storage according to stated class : 1K22/ DIN 60721-3-1; Materials : PA 6.6 grey; Sealing: EPDM; Moulded-body material : PA 6.6; Material nut : stainless steel; Sealing material : EPDM; screw terminals: 0.25...1 mm²; Cable sheath: Ø 3.5...6 mm; AWG 23...17

Type

Wirable sockets

Connection

Connector: 1 x M12, straight; Moulded body: PA 6.6, grey; Locking: stainless steel; Sealing: EPDM; Contacts: gold-plated; Tightening torque: 0.6...1.2 Nm; Take into account the maximum value of the counterpart!

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

< 60 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow | operation: 1 x LED, green

Degree of protection

IP 65; IP 67; IP 68; IP 69K

Weight

40.1 g

Dimensions

15.5 x 15.5 x 51.5 mm
