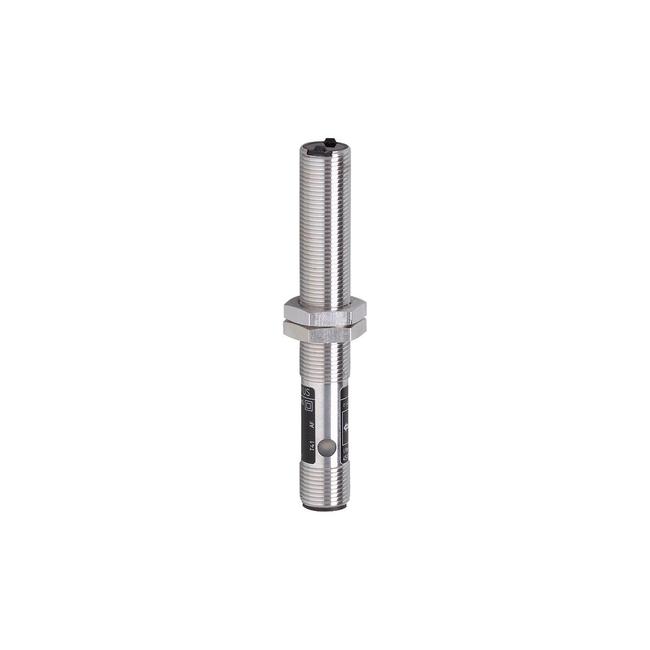

OF5021 ifm ⍾ OFS-OOKG/US-100

Through-beam sensor transmitter; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : infrared light; Wave length [nm] : 880; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Transmitter / receiver : transmitter; Range [m] : < 4; Range adjustable : no; Max. light spot diameter [mm] : 700; Light spot dimensions refer to : at maximum range; Ambient temperature [°C] : -25...60; Housing : threaded type; Thread designation : M12 x 1; Materials : brass white bronze coated; Lens material : PMMA; Items supplied : lock nuts: 2 x

Type

Photoelectric sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

< 25 mA

Voltage supply

24 V

Display

operation: 1 x LED, green

Degree of protection

IP 65

Weight

35.5 g

Dimensions

M12 x 1 / L = 74 mm
