OD1-B035H15U25 SICK ⍾ 6050506 ⍾ OD1B035H15U25

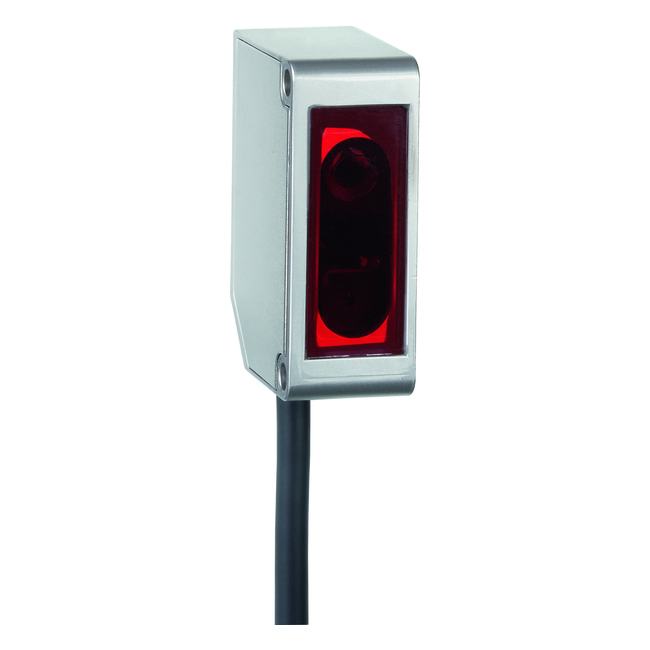

The OD Mini OD1-B035H15U25 is a laser distance sensor designed for precise, short-range measurements. It features selectable PNP/NPN digital output and voltage analog output. The sensor offers a measuring range of 20-50 mm with a linearity of ±30 µm and utilizes a Class 1 laser. It has a typical light spot size of 800 µm x 450 µm at 35 mm distance and is housed in stainless steel with an M12, 5-pin, 30 cm cable connector.
- Type
- OD Mini
- Customs tariff number
- 90314990
- Expected origin
- JP
- Weight
- 0.13 kg
 |
SICK OD1-B035H15U25 Datasheet PDF (en) Size: 548 KB |
Download |
