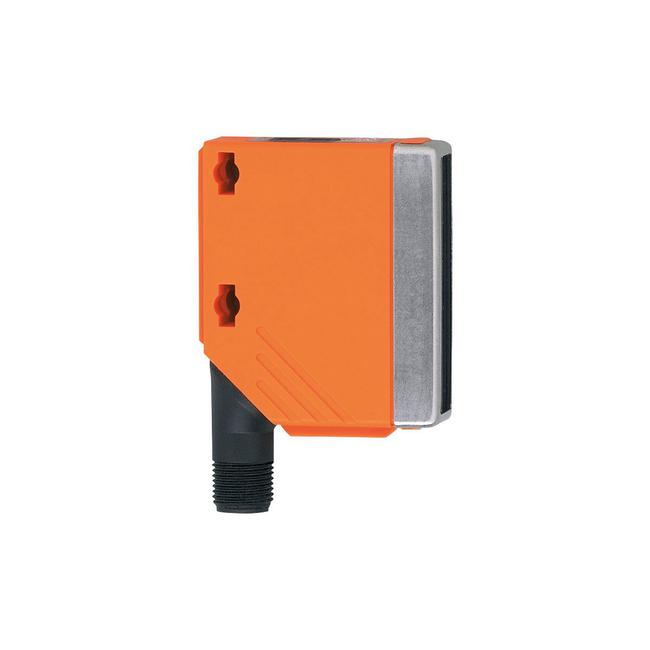

O5E700 ifm ⍾ O5ELFPKG/US100

Through-beam laser sensor receiver; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Type of light : red light; Wave length [nm] : 655; Electrical design : PNP; Output function : light-on/dark-on mode; (programmable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 1000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Transmitter / receiver : receiver; Range [m] : < 60; Range adjustable : yes; Diameter of the smallest detectable object [mm] : 3; (60 m); Ambient temperature [°C] : -10...60; Housing : rectangular; Materials : housing: PA; bezel: stainless steel; operator interface: TPU; Lens material : PMMA; Lens alignment : side lens; Teach function : yes; Electronic lock : yes

Type

Laser sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

11 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 67

Weight

67.5 g

Dimensions

56 x 18.2 x 46.8 mm
