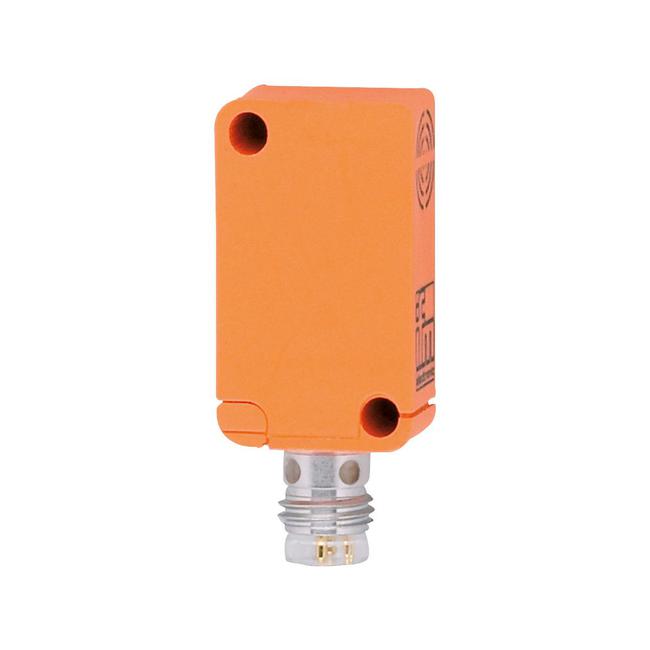

MS5010 ifm ⍾ MS-3060-BPKG/AS-510-TPS

Magnetic sensor; Operating voltage [V] : 10...30 DC; ("supply class 2" to cULus); Protection class : III; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 200; Switching frequency DC [Hz] : 5000; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 60; (referred to magnet M 4.0); Response sensitivity [mT] : 1.2; Hysteresis [% of Sr] : 1...10; Ambient temperature [°C] : -25...75; Housing : rectangular; Materials : housing: PBT orange

Type

Magnetic sensors

Connection

Connector: 1 x M8; Contacts: gold-plated

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

< 10 mA

Voltage supply

24 V

Display

switching status: 1 x LED, yellow

Degree of protection

IP 67

Weight

17 g

Dimensions

28 x 10 x 16 mm
