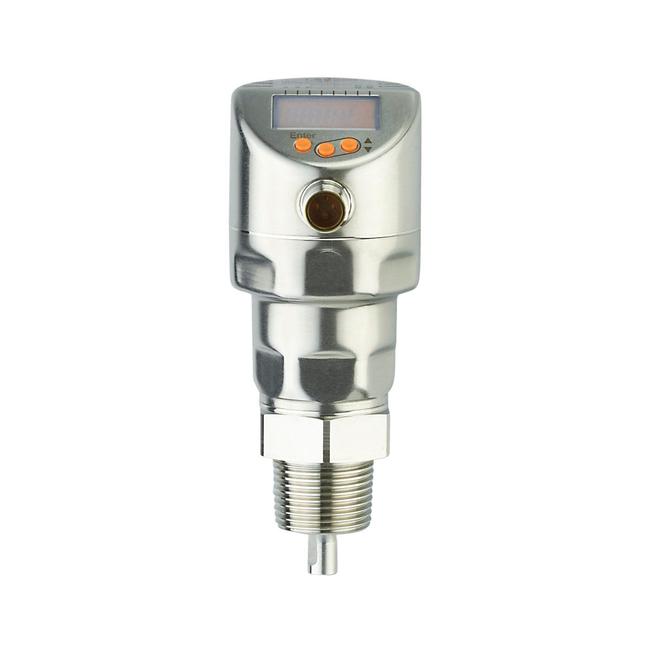

LR2350 ifm ⍾ LR0000BSEN34AKSKG/US

Continuous level sensor (guided wave radar); Operating voltage [V] : 18...30 DC; Protection class : III; Reverse polarity protection : yes; Power-on delay time [s] : < 3; Measuring principle : guided wave radar; Total number of outputs : 2; Output signal : switching signal; analogue signal; IO-Link; Electrical design : PNP/NPN; Number of digital outputs : 1; Output function : normally open / normally closed; (parameterisable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 150; (200 (...60 °C)); Number of analogue outputs : 1; Analogue current output [mA] : 4...20, invertible; (scalable); Max. load [Ω] : 500; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Probe length L [mm] : 150...2000; Active range A [mm] : L-40; Inactive range I1 / I2 [mm] : 30 / 10; Sampling rate [Hz] : 4; Set point SP [mm] : ≥ 15 ...L-30; Reset point rP [mm] : ≥ 10 ...L-35; In steps of [mm] : 1; Hysteresis [mm] : > 5; Measuring error [mm] : ± 7; Offset error [mm] : 5; Resolution [mm] : 1; Zero signal (current) [mA] : 4.0; Full signal (current) [mA] : 20; Temperature drift per 10 K : ± 0.2 %; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9; Profiles : Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis; SIO mode : yes; Required master port type : A; Process data analogue : 1; Process data binary : 2; Min. process cycle time [ms] : 2.3; Supported DeviceIDs : Type of operation: DeviceID | Default: 730; Ambient temperature [°C] : -40...80; Storage temperature [°C] : -40...100; Materials : stainless steel (1.4404 / 316L); PEI; PFA; PBT; FKM; Materials (wetted parts) : stainless steel (1.4404 / 316L); stainless steel (1.4435 / 316L); PTFE; FKM; Process connection : 3/4" NPT

Type

Level sensors

Connection

Connector: 1 x M12; Contacts: gold-plated

No. of inputs/outputs

Number of digital outputs: 1; Number of analogue outputs: 1

Current consumption

< 50 mA

Voltage supply

24 V

Display

Display unit: 3 x LED, green | switching status: 2 x LED, yellow | level: alphanumeric display, 4-digit | parameter setting: alphanumeric display, 4-digit

Degree of protection

IP 68; IP 69K

Weight

448 g

Dimensions

Ø 30 / L = 125.5 mm
