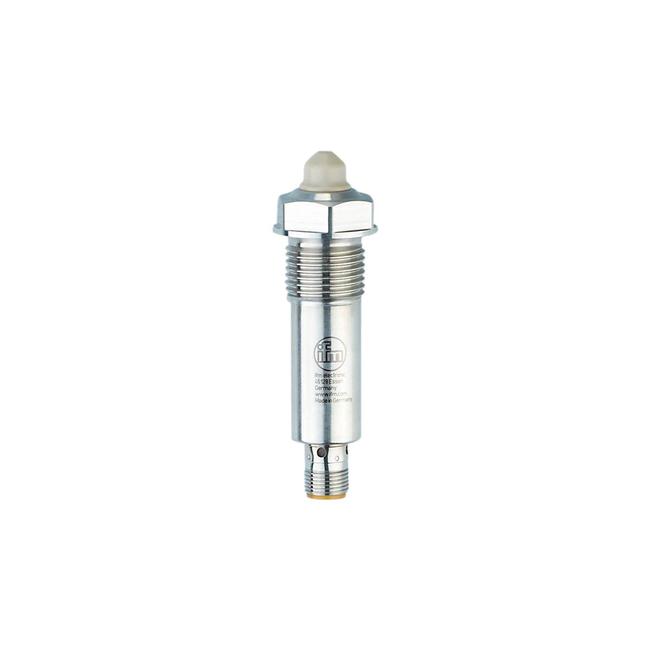

LMC410 ifm ⍾ LMGCE-C12E-QSKG-1/US

Sensor for point level detection; Medium temperature [°C] : -25...100; Operating voltage [V] : 18...30 DC; Protection class : III; Reverse polarity protection : yes; Total number of outputs : 2; Output signal : switching signal; IO-Link; Electrical design : PNP/NPN; Number of digital outputs : 2; Output function : normally open / normally closed; (parameterisable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 50; (100 (...60 °C)); Short-circuit protection : yes; Type of short-circuit protection : thermal, pulsed; Overload protection : yes; Factory setting : oils; oil-based media; Response time [s] : < 0.5; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9; Profiles : Smart Sensor: Process Data Variable; Device Identification, Device Diagnosis; SIO mode : yes; Required master port type : A; Process data analogue : 1; Process data binary : 2; Min. process cycle time [ms] : 2.3; Supported DeviceIDs : Type of operation: DeviceID | Default: 675; Ambient temperature [°C] : -25...85; Note on ambient temperature : for installation in probe observe the temperature in the pipe, see installation instructions; Storage temperature [°C] : -40...85; Materials : stainless steel (1.4404 / 316L); PEEK; PEI; FKM; Materials (wetted parts) : stainless steel (1.4404 / 316L); PEEK; FKM; Process connection : G 1/2 external thread

Connection

Connector: 1 x M12; Contacts: gold-plated

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

< 35 mA

Voltage supply

24 V

Display

switching status: LED, yellow | operating status: LED, green

Degree of protection

IP 68; IP 69K; (7 days / 1 m water depth / 0.1 bar: IP 68)

Weight

128.5 g

Dimensions

Ø 18.1 / L = 76.2 mm
