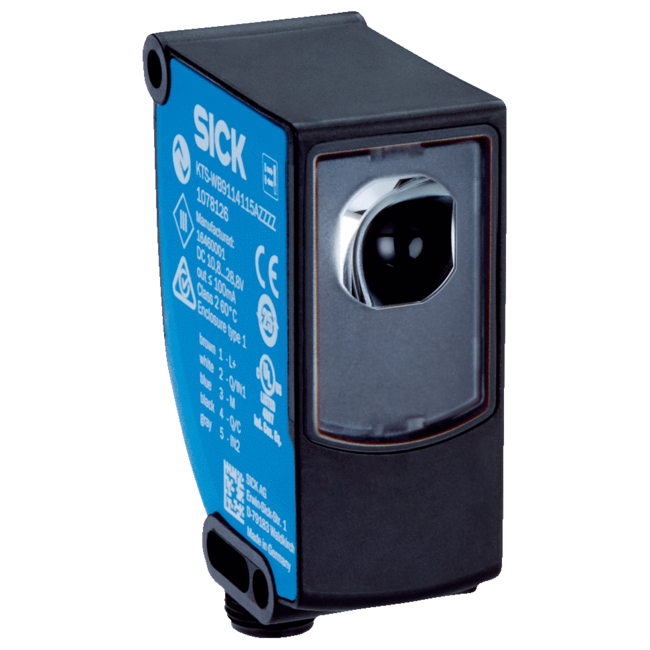

SICK KTS-WB91241152ZZZZ

KTS-WB91241152ZZZZ SICK ⍾ 1078124 ⍾ KTSWB91241152ZZZZ

Features: Special applications: Standard; Device type: Standard; Dimensions (W x H x D): 26 mm x 62 mm x 47.5 mm; Sensing distance: 25 mm; Sensing distance tolerance: ± 6 mm; Housing design (light emission): Rectangular; Light source: LED, RGB 1); Wave length: 470 nm, 525 nm, 625 nm; Light emission: Long side of housing; Light spot size: 1.2 mm x 5.3 mm; Light spot direction: Vertical 2); Receiving filters: None; Teach-in mode: 1-point teach-in, 2-point teach-in, teach-in dynamic, auto mode; Output function: Light/dark switching; Delay time: Adjustable; Special features: -; Delivery status: 2-point teach-in; Parameter presettings: None; Mechanics/electronics: Supply voltage: 10.8 V DC ... 28.8 V DC 1); Ripple: ≤ 5 Vpp 2); Power consumption: < 100 mA 3); Switching frequency: 50 kHz 4); Response time: 10 µs 5); Jitter: 5 µs 6); Switching output: PUSH/PULL; Switching output (voltage): Push/Pull: HIGH = VS - 3 V / LOW ≤ 3 V; Output current Imax.: 100 mA 7); Input, teach-in (ET): Teach: U = 10 V ... < VS; Input, blanking input (AT): Blanked: U = 10 V ... < Uv; Input, fine/coarse (F/C): Coarse: U = 10 V ... < Uv; Input, light/dark (L/D): Light: U = 10 V ... < Uv; Retention time (ET): 25 ms, non-volatile memory; Connection type: Male connector M12, 5-pin; Protection class: III; Circuit protection: UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression; Enclosure rating: IP67; Weight: 68 g; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Ambient data: Ambient operating temperature: –20 °C ... +60 °C; Ambient storage temperature: –25 °C ... +75 °C; Shock load: According to IEC 60068-2-27 (30 g/11 ms); UL File No.: E181493; Classifications: ECl@ss 5.0: 27270906; ECl@ss 5.1.4: 27270906; ECl@ss 6.0: 27270906; ECl@ss 6.2: 27270906; ECl@ss 7.0: 27270906; ECl@ss 8.0: 27270906; ECl@ss 8.1: 27270906; ECl@ss 9.0: 27270906; ECl@ss 10.0: 27270906; ECl@ss 11.0: 27270906; ETIM 5.0: EC001820; ETIM 6.0: EC001820; ETIM 7.0: EC001820; UNSPSC 16.0901: 39121528
