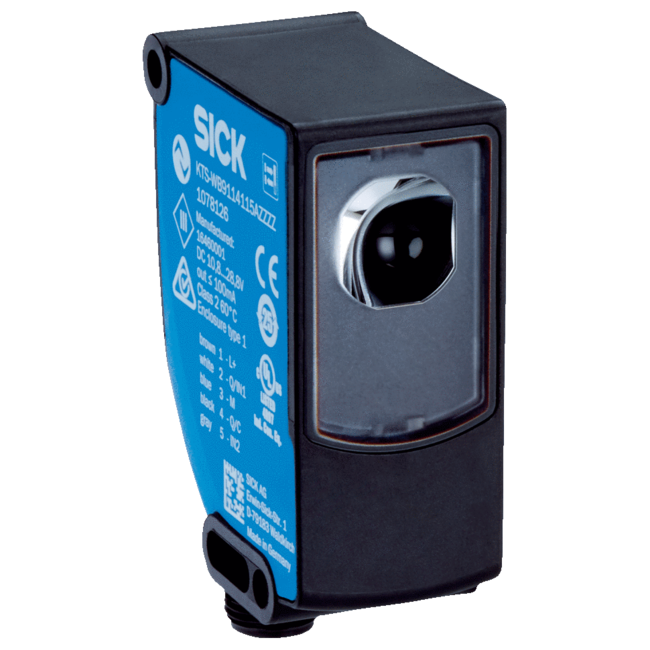

KTS-WB91141152ZZZZ SICK ⍾ 1078122
This is a KTS contrast sensor (Model: KTS-WB91141152ZZZZ) featuring an LED light source and a sensing distance of 13 mm. It offers a push-pull PNP/NPN switching output and has a light spot size of 0.9 mm x 3.8 mm with vertical light spot direction. The device connects via an M12, 5-pin plug and supports various teach-in modes, including 2-point teach-in.
- Type
- KTS Prime
- Customs tariff number
- 85365019
- Expected origin
- DE
- Weight
- 0.1 kg
