400mA

Ask about price and delivery time

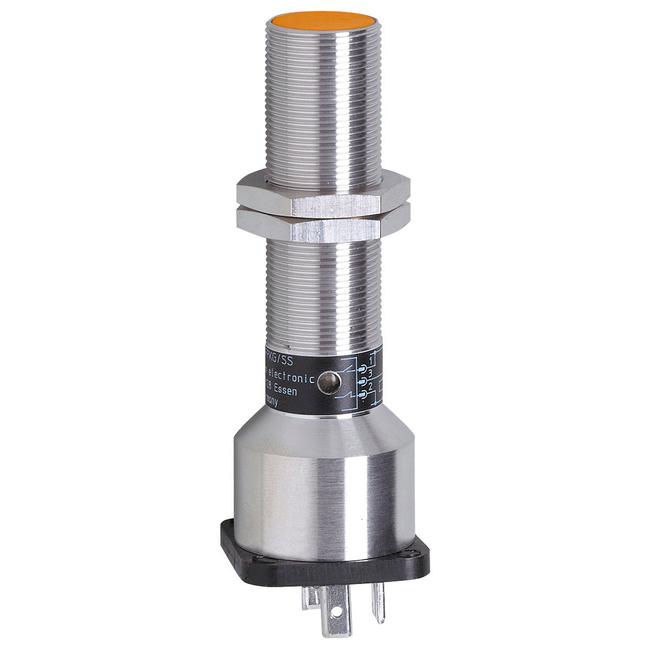

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 400; Switching frequency DC [Hz] : 250; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 8; Real sensing range Sr [mm] : 8 ± 10 %; Operating distance [mm] : 0...6.5; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 3...10; Switch point drift [% of Sr] : -18...18; Ambient temperature [°C] : -32...70; Housing : threaded type; Mounting : flush mountable; Thread designation : M18 x 1; Materials : brass white bronze coated; PC; Items supplied : lock nuts: 2

Type: Inductive sensors
Connection: Connector: 1 x valve type A DIN (DIN EN 175301-803)
No. of inputs/outputs: Number of analogue outputs: 1
Current consumption: 15; (24 V) mA
Voltage supply: 24 V
Display: switching status: 1 x LED, yellow
Degree of protection: IP 67
Weight: 88.9 g
Dimensions: M18 x 1 mm
