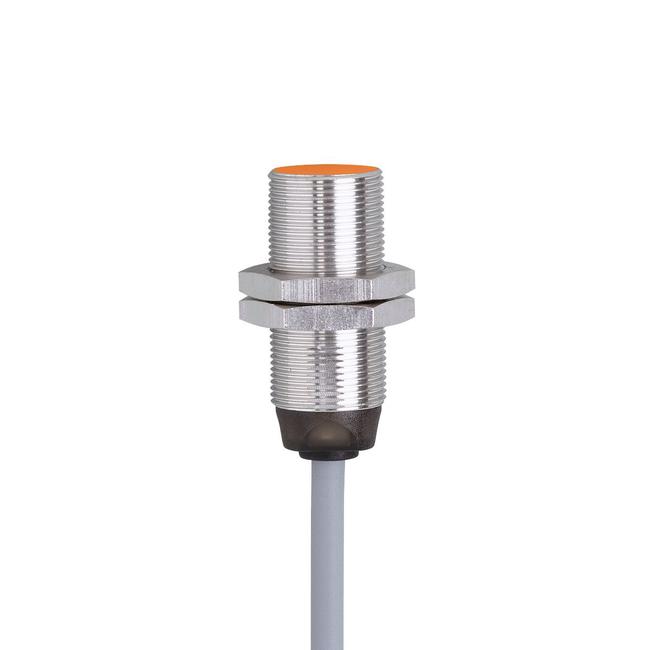

IG5899 ifm ⍾ IGB2008BBROG/UP/6M/PH

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : no; Electrical design : PNP/NPN; Output function : normally closed; Max. voltage drop switching output DC [V] : 5; Minimum load current [mA] : 5; Max. leakage current [mA] : 1; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 100; Short-circuit protection : no; Overload protection : no; Sensing range [mm] : 8; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3; Ambient temperature [°C] : -25...70; Housing : threaded type; Mounting : flush mountable; Thread designation : M18 x 1; Materials : brass white bronze coated; PC; Items supplied : lock nuts: 2

Type

Inductive sensors

Connection

Cable: 6 m, PUR / PVC; 2 x 0.34 mm²

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

15; (24 V) mA

Voltage supply

24 V

Display

switching status: 1 x LED, red

Degree of protection

IP 67

Weight

303 g

Dimensions

M18 x 1 / L = 43 mm
