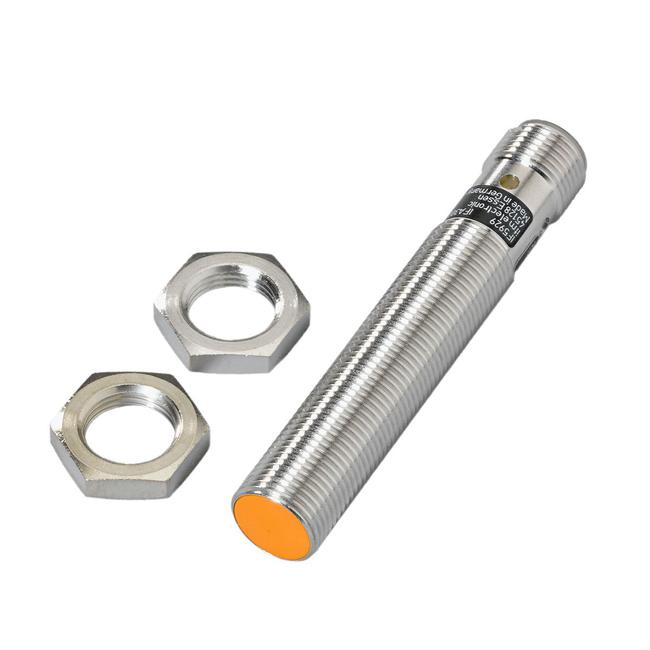

IF5653 ifm ⍾ IFA4002-CPKG/US-104-DPA

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP; Output function : complementary; Max. voltage drop switching output DC [V] : 3.5; Permanent current rating of switching output DC [mA] : 250; (400 (...50 °C)); Short-time current rating of switching output [mA] : 400; Switching frequency DC [Hz] : 1200; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 2; Real sensing range Sr [mm] : 2 ± 10 %; Operating distance [mm] : 0...1.6; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...80; Housing : threaded type; Mounting : flush mountable; Thread designation : M12 x 1; Materials : brass white bronze coated; sensing face: PC; Items supplied : lock nuts: 2

Type

Inductive sensors

Connection

Connector: 1 x M12

No. of inputs/outputs

Number of analogue outputs: 1

Current consumption

15; (24 V) mA

Voltage supply

24 V

Display

switching status: 4 x 90° LED, yellow

Degree of protection

IP 65

Weight

29.9 g

Dimensions

M12 x 1 / L = 70 mm
