GJL1213909R7011 ABB ⍾ VB6S-30-01-P1.7-71

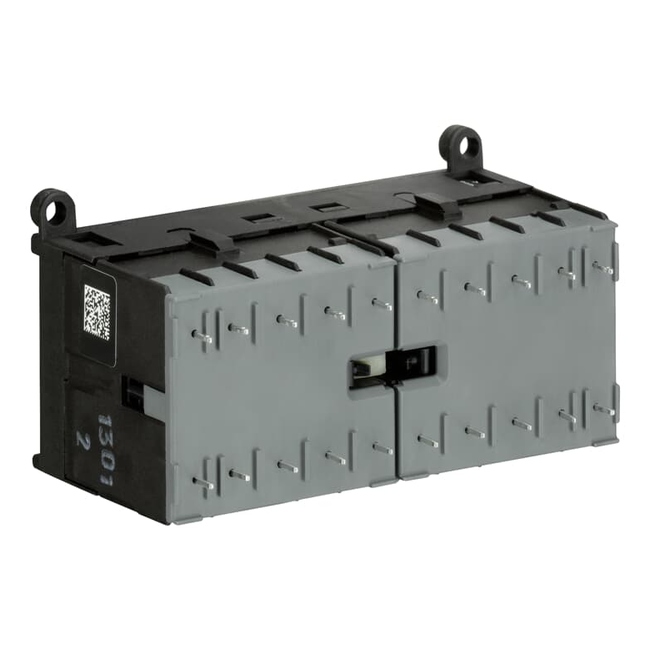

The VB6S-30-01-P mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, soldering pins and and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Due to the low coil consumption, this device can be directly controlled by a PLC. Further features are the noiseless and hum-free coil, the integrated protective circuit with diodes and additional overvoltage protection, a switch position indication and the integrated possibility for rail or wall mounting. Auxiliary contacts,

Type

Mini Contactors

Catalog description

VB6S-30-01-P-1.7-71 Mini Rev.Contactor 24VDC, 1.7W

Customs tariff number

85365080

Weight

0.355 kg

Dimensions

(WxHxD/L) 96.5 mm x 57.5 mm x 51.5 mm

EAN

4013614401442
