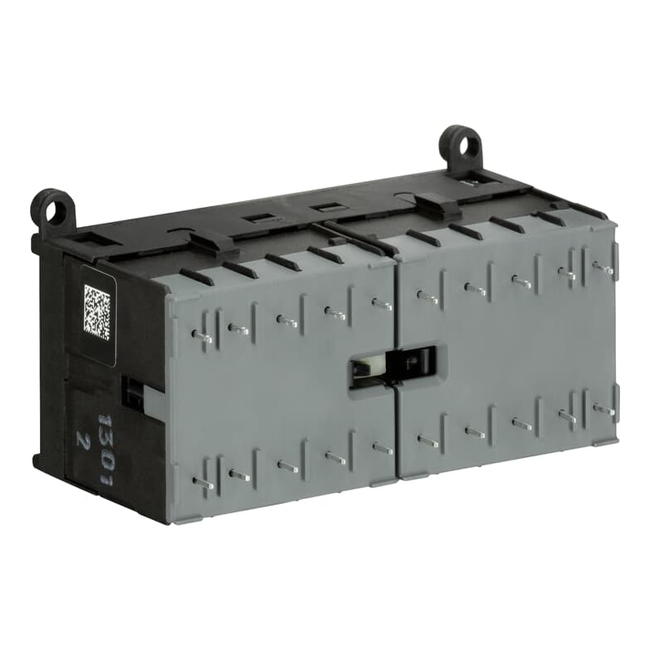

GJL1213909R0107 ABB ⍾ VBC6-30-10-P-07
The VBC6-30-10-P mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, soldering pins and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail mounting.
- Type
- Mini Contactors
- Catalog description
- VBC6-30-10-P-07 Mini Rev.Contactor 12VDC
- Customs tariff number
- 85365080
- Weight
- 0.345 kg
- Dimensions
- (WxHxD/L) 96.5 mm x 57.5 mm x 51.5 mm
- EAN
- 4013614085642
