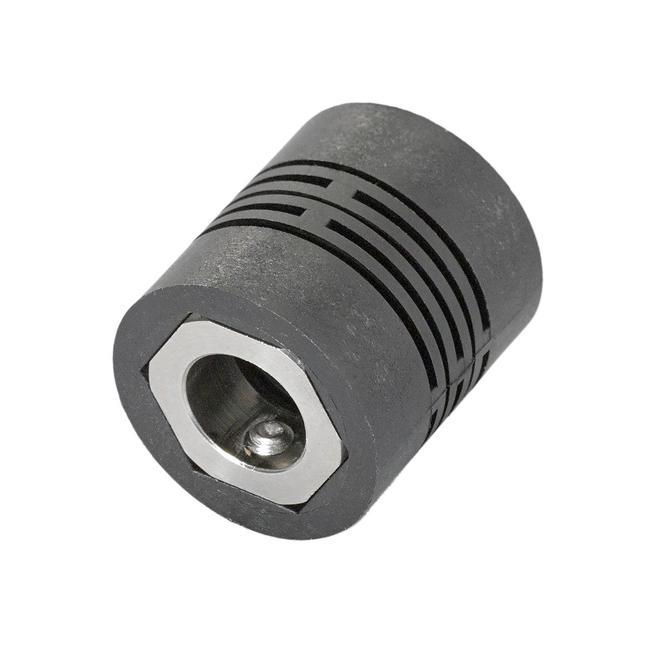

E60193 ifm ⍾ Coupling 25-10-10-24-SV

Coupling for encoders; Materials : PA 6.6; stainless steel (1.4404 / 316L); External diameter D [mm] : 25; Inside diameter A1 [mm] : 10; Inside diameter A2 [mm] : 10; Length L [mm] : 24; Clamp screw [mm] : M4; Max. revolution, mechanical [U/min] : 10000; Max. axial shaft misalignment [mm] : ± 0,2; Max. radial shaft misalignment [mm] : ± 0,3; Max. angular displacement [°] : ± 3,0

Type

Couplings and bearings

Connection

Connector: 1 x M18, angled; Moulded body: brass, nickel-plated; Locking: brass, nickel-plated

Current consumption

< 47 mA

Display

colour display 1,44", 128 x 128 pixels | 2 x LED, yellow

Degree of protection

IP 67

Weight

18.6 g

Dimensions

Ø 25 / L = 24 mm
