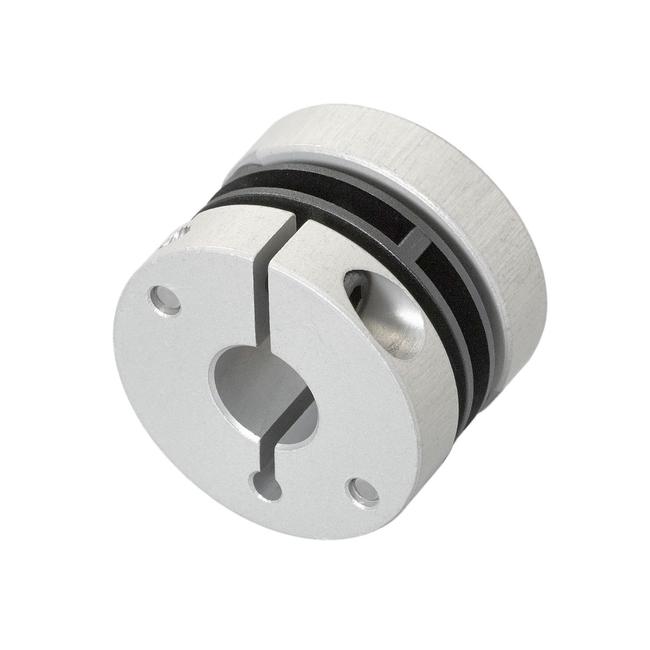

E60118 ifm ⍾ SPRING COUPLING 30-10-10-22

Spring disc coupling electrically isolating; Materials : aluminium; PA; Tightening torque [Nm] : tightening torque screws: 100 Ncm; Spring disc coupling: 60 Ncm; External diameter D [mm] : 30; Inside diameter A1 [mm] : 10; Inside diameter A2 [mm] : 10; Length L [mm] : 22; Max. revolution, mechanical [U/min] : 12000; Max. axial shaft misalignment [mm] : ± 0,4; Max. radial shaft misalignment [mm] : ± 0,3; Max. angular displacement [°] : ± 2,5; Rigidity of the torsion spring [Nm/rad] : 50

Type

Couplings and bearings

Connection

Cable: 0.15 m, PUR / PVC, black, Ø 6.8 mm; 4 x 0.25 mm²

Current consumption

< 47 mA

Display

colour display 1,44", 128 x 128 pixels | 2 x LED, yellow

Degree of protection

IP 68

Weight

29.9 g

Dimensions

Ø 30 / L = 22 mm
